Metal Detector for Liquids

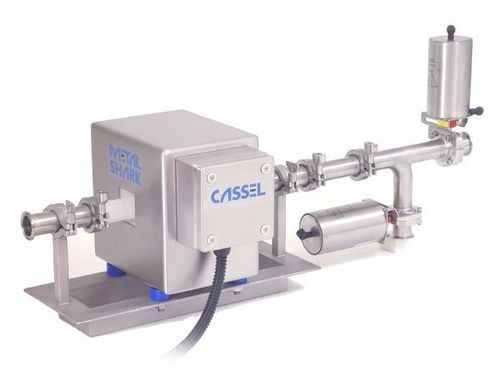

The Cassel Metal Detector for Liquids and Slurries Series: IN-Liquids is designed specifically for the inline inspection of liquids, pastes, and slurries in industrial production processes.
The system uses advanced electromagnetic field technology to detect ferrous, non-ferrous, and stainless steel contaminants in liquids and slurries.
It features a specialized coil system inside the detection tube. As the product flows through the detector, any metal particles passing through disrupt the electromagnetic field, creating a detectable signal.

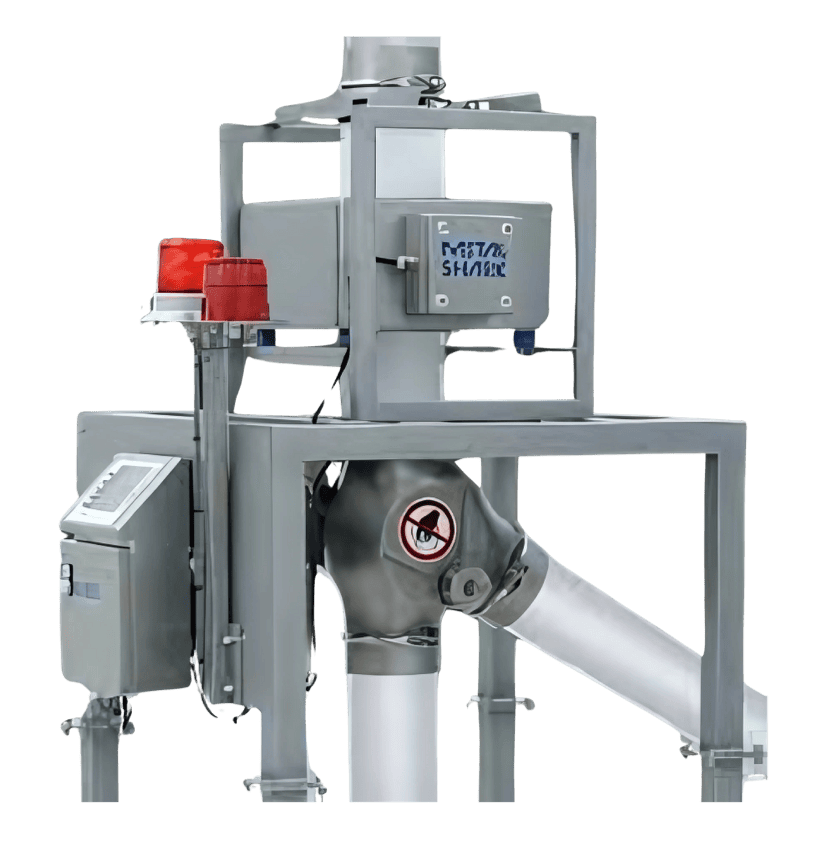

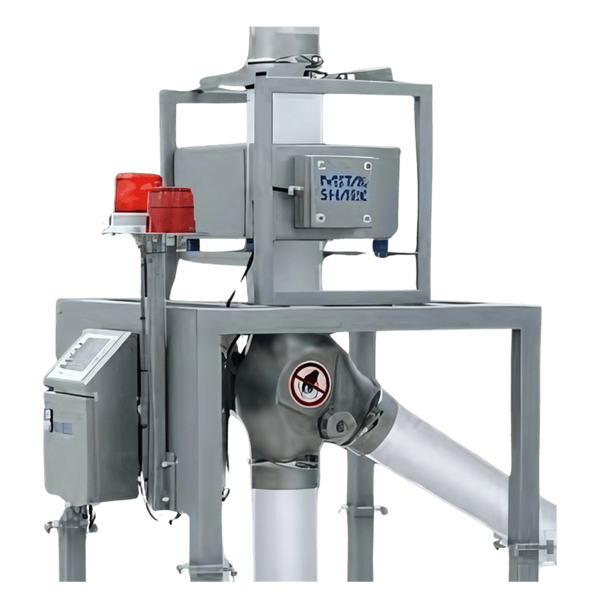

The detector is installed directly in the production pipeline. It is compatible with various pump systems, including pressure and gravity-fed systems.
The detector operates continuously without interrupting the flow of liquids or slurries, making it suitable for high-speed production lines.
Benefits of the Liquid Metal Detector From Magnetic Products, Inc
-
Inline Detection for Pumped Liquids
Designed for integration into pressurized or vacuum pipelines, ensuring metal detection occurs in real-time during product flow without batch interruption.
-
High Sensitivity to All Metal Types
Detects fine ferrous, non-ferrous (e.g., aluminum), and stainless-steel particles using multi-frequency digital signal processing—ideal for emulsified, viscous, or particulate-containing liquids.
-
CIP-Compatible & Hygienic Design
Constructed from food-grade stainless steel with crevice-free surfaces and sanitary fittings. Fully compatible with CIP and SIP (Steam-in-Place) cleaning protocols.
-

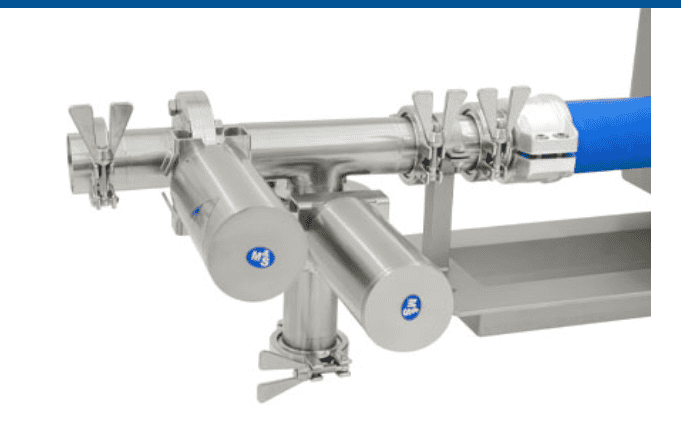

Fast-Acting Reject Valve
An integrated pneumatic valve or three-way diverter quickly removes contaminated products from the line with minimal product loss or pressure drop.
-
Adaptable to Product Viscosity
It is suitable for a wide range of liquid textures, including thin beverages, thick pastes, and pumpable slurries, without sacrificing detection accuracy.
-
User-Friendly Operation
Features an intuitive touchscreen interface with product memory, auto-learn calibration, and real-time monitoring to simplify setup and operation.
-
Compliance-Ready
It supports HACCP and GMP quality systems, and optional validation ports and test kits enable regular performance verification and audit readiness.
-
Optional SharkNet® Integration
Compatible with MPI’s SharkNet® software for centralized monitoring, remote diagnostics, electronic data logging, and 21 CFR Part 11 compliance.

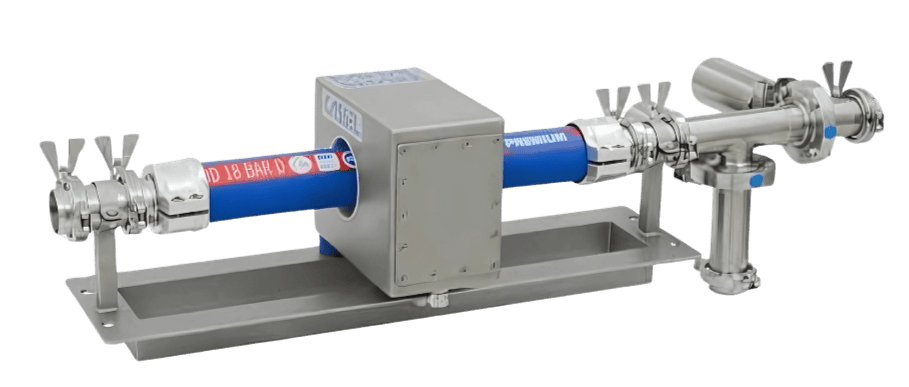

Liquid Metal Detector Product Details
The Cassel Metal Detector for Liquids and Slurries Series: IN-Liquids is designed specifically for detecting metal contaminants in liquids, slurries, and pastes during industrial processing. These types of metal detectors are commonly used in industries such as food, pharmaceuticals, and chemicals, where maintaining product purity is crucial. Here's how the system works:
- Detection Principle: The Cassel IN-Liquids metal detector operates using electromagnetic fields. It uses a combination of coils to generate a magnetic field and detect metal contaminants within the product as it flows through the system. When the liquid or slurry passes through the detector, any metal object inside the product will disrupt the electromagnetic field, causing a change in the signal.
- Signal Processing: The metal detector’s coils continuously monitor changes in the electromagnetic field. If any metal is detected, the system’s electronics analyze the signal’s frequency, amplitude, and phase to identify the type of metal, its size, and its position in the flow. The detector can identify ferrous, non-ferrous, and stainless steel contaminants, which are common in many industrial applications.
- Automatic Reject System: Once metal contamination is detected, the system triggers an automatic rejection mechanism. This could include a diverter valve, a pneumatic system, or an automatic shutoff, which ensures that contaminated material does not continue through the process line.
- Hygienic Design: The IN-Liquids detectors are designed to be highly resistant to the impact of the liquids or slurries they are processing. The system is built with a hygienic and easy-to-clean design, which is important for industries like food production. The sensor components are often made of materials that are corrosion-resistant and easy to sanitize.
- Real-Time Monitoring: The system allows real-time monitoring of product flow, ensuring that any contamination is detected immediately. This ensures that operators are alerted quickly and can take corrective action to prevent further contamination.
- Integration with Production Lines: Cassel's metal detectors for liquids can be seamlessly integrated into existing production lines. The system is designed to work in high-throughput environments without causing significant disruptions or slowdowns.
Liquid Metal Detector Specification Table
| METAL SHARK® IN LIQUID FEATURE | METAL SHARK® IN LIQUID CAPABILITY |
|---|---|
| Type | With automatic rejection (butterfly or arc) |
| Overall Length | 950 to 1630 mm |
| Metal Alarm | Automatic rejection |
| Reject Time | 0.1 – 9.9 sec adjustable |
| Air Pressure | min. 5 bar |
| Delivery Pressure | 16 bar (optional: 40 bar) |
| Frame | Assembly platform frame (optional: mobile stand) |
| Sensitivity | Fe 0.4-0.7, Nfe 0.7-1.0, SS 0.8-1.5 mm |
| Electronics | Digital signal processor, digital frequency generation, digital balance control, automatic calibration, digital noise filters, integrated flexible control functions |
| Input | 2 analog 0…10 VDC (Option: 4-20 mA) ; 8 freely configurable 24 V DC signals, e.g. for reject confirmation |
| Output | 2 floating: “error” and “metal” ; 8 freely configurable 24 V DC signals, e.g. for metal or acoustic alarm |
| Inspection Method | High-frequency magnetic field, multi-channel operation, symmetrical receiver coils |
| Metal Detection | Ferrous, non-ferrous (e.g. aluminum or copper) and stainless steel |
| Product Compensation | 250 memory locations, automatic product compensation, Teach Assistant |
| Protection Type | IP66 (optionally IP67), Controller IP66 |
| Ambience | Controller: +20°C to +40°C / -4°F to 104°F, option: -40°C / -40°F or +55°C / 131°F, rel. humidity 20% up to 90% (non-condensing), >95% rel. humidity (condensing) with closed cabinet door Sensor: -30°C to +60°C / -22°F to 140°F Option: Up to +90°C / 194°F |
| Product Temperature | Up to +95°C / 203°F (liquids) or up to +164°C / 327°F (steam) |
| Power Supply | One phase 110-230 V AC +/-5 %, typ. consumption 20 W (max. 60 W) |
| Interface | RS232, provides documentation according to HACCP- and IFS-standard, USB- or ethernet option |
| Maintenance | Maintenance-free, self-calibrating sensors |
| Diagnostics | Integrated diagnostic software, automatic self-test |
Liquid Metal Detection Installations & Variations

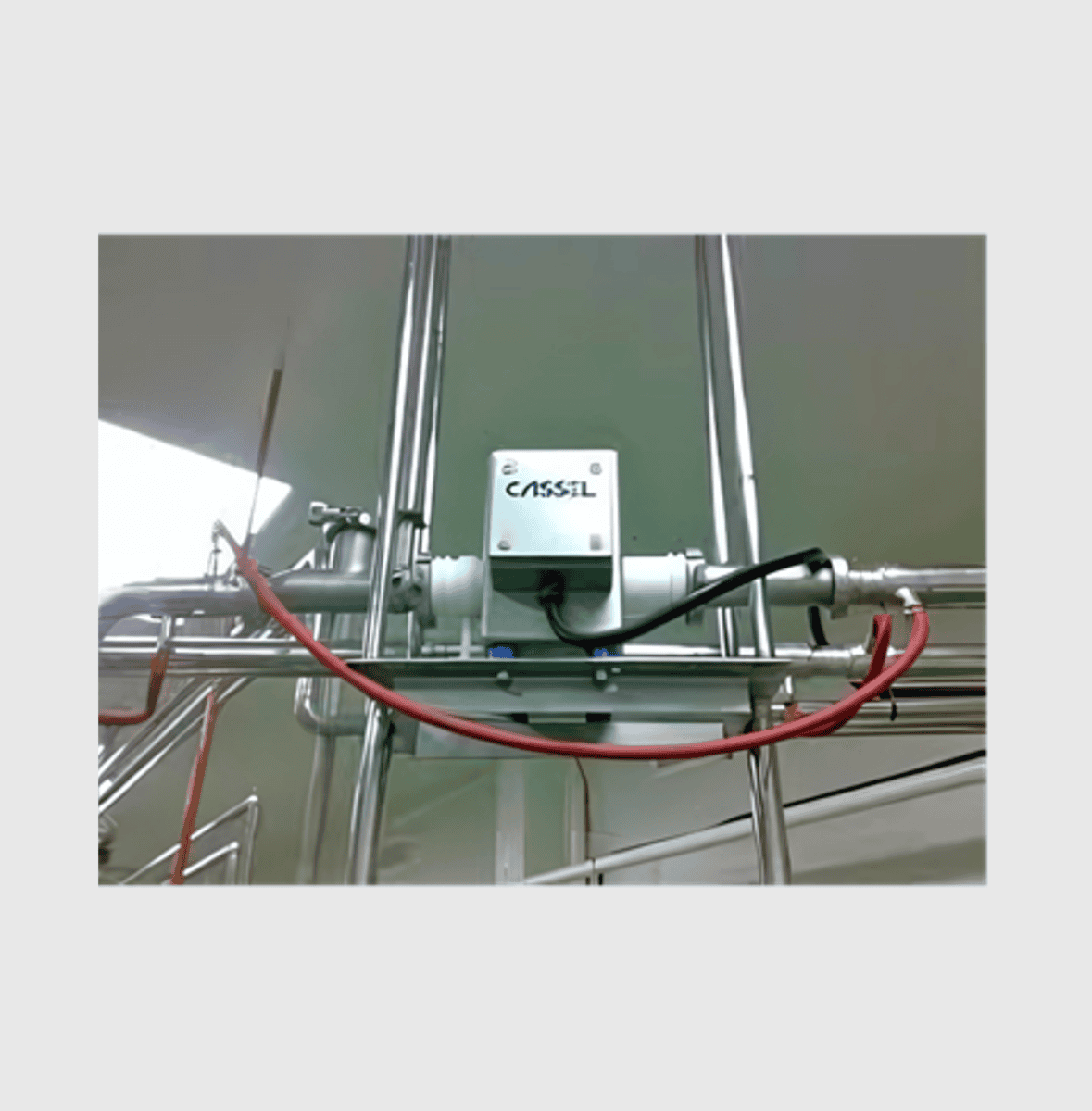

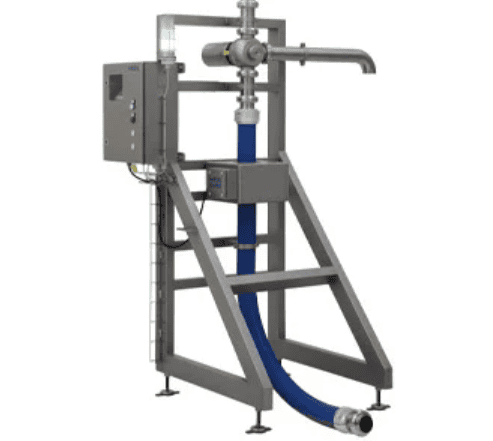

IN LIQUID Metal Detector for High-Salt Content Cheese

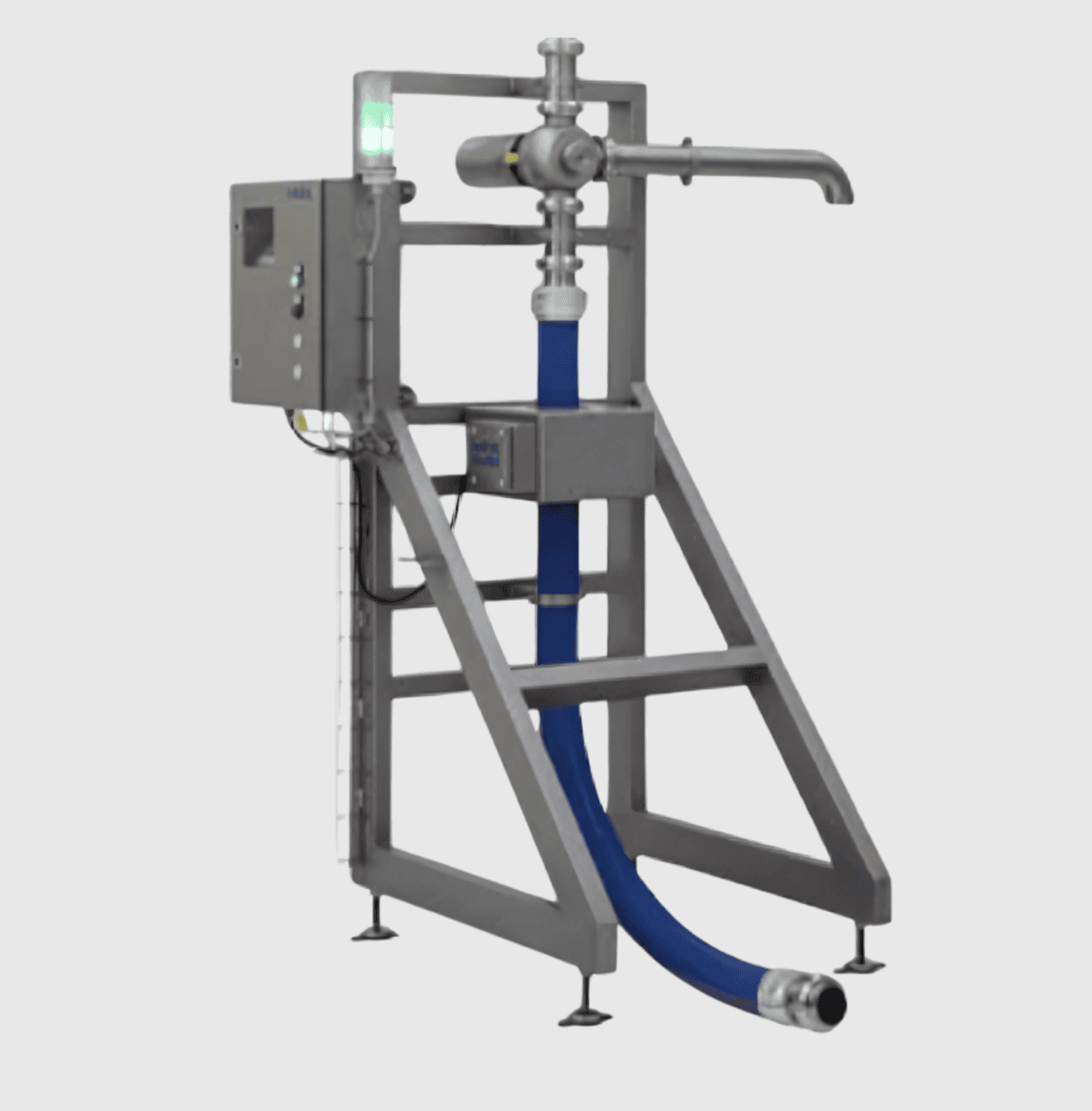

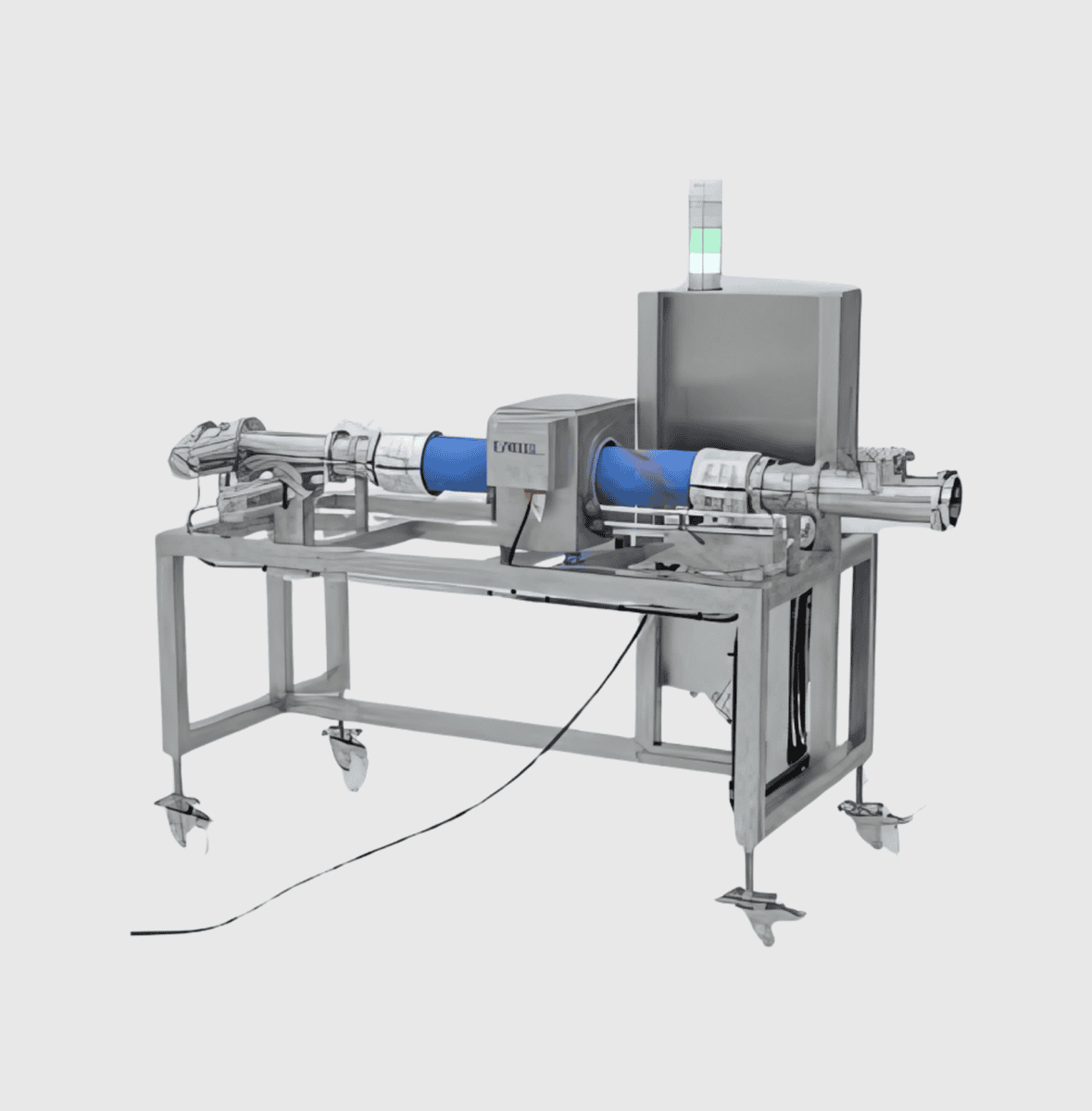

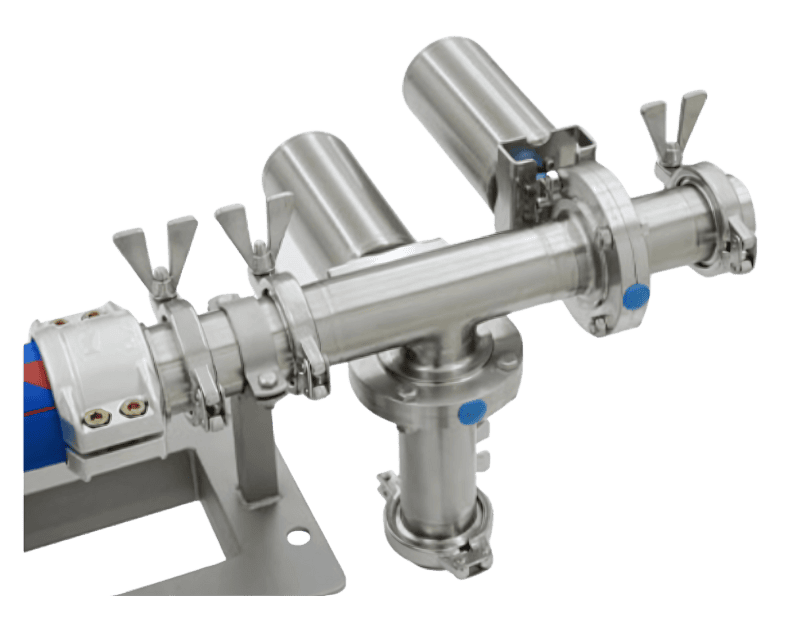

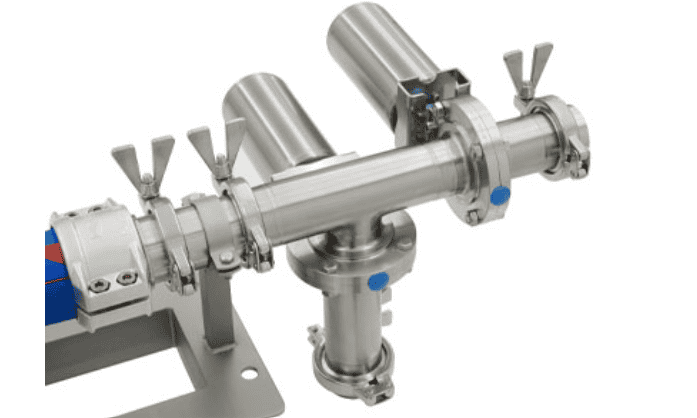

IN LIQUID Metal Detector with EX-PWC Reject Valve Option for Unimpeded Flow with Non-Fluid Components
