Ceramic Carbon or Stainless Steel Injection Molding Drawer Magnet

Built for Abrasive Processing and Heavy Contamination

Magnetic Products Inc. (MPI) Carbon and Stainless-Steel Drawer Magnets are designed to remove ferrous metal contaminants from dry, free-flowing materials in gravity-fed systems. These drawer magnets offer a cost-effective, durable solution for protecting processing equipment and ensuring product purity. Built with sturdy carbon or stainless-steel housing, these magnets are ideal for use in industries such as plastics, food processing, chemicals, and recycling, where high-performance magnetic separation is essential.

Carbon Steel and Stainless-Steel Drawer Magnets are designed to offer optimal tramp metal protection for plastic injection molding and extrusion equipment. They are particularly effective when working with plastic regrind materials, which often contain elevated levels of tramp metal.

MPI’s Drawer Magnets excel in delivering superior tramp metal protection for plastic injection molding and extruding machinery. Our carbon steel and stainless-steel drawer magnets present a cost-effective solution with numerous benefits and features that are absent in competing products. The CDM and SDM Drawer Magnets are well-suited for handling plastic regrind materials with potentially higher tramp metal content. Employing MPI's robust CDM or SDM Drawer Magnets can help minimize equipment maintenance, avoid damage, and enhance the production of quality parts.

Carbon Steel and Stainless Steel Drawer Magnets are engineered to effectively protect plastic injection molding and extruding equipment from tramp metal, making them particularly suitable for handling plastic regrind materials that often contain elevated levels of such contaminants.

Benefits of the Ceramic Carbon or Stainless Steel Injection Molding Drawer Magnets

  • High-Performance Magnetic Tubes

    Powerful rare-earth or ceramic magnets efficiently capture and retain fine and coarse ferrous contaminants, ensuring superior metal separation.

  • Durable Housing Options

    Carbon steel for cost-effectiveness or stainless steel for corrosion resistance, with food-grade models featuring FDA-compliant materials and coatings.

  • Compact & Modular Design

Designed for seamless integration into existing processing systems with minimal modification, making installation quick and easy.

  • Quick-Release Manual Cleaning

Easy-access swing bolt latches allow operators to remove and clean the magnet drawer efficiently, reducing maintenance time and production downtime.

  • Customizable Configurations

Available in various drawer sizes and magnet arrangements to accommodate different material flow rates and application needs.

  • Clear Polycarbonate Face

This feature enables real-time visual monitoring of material flow and contaminant collection, ensuring timely maintenance and maximum efficiency.

  • Reliable Equipment Protection

Effectively removes tramp metal contaminants, preventing equipment damage, reducing wear, and extending the lifespan of downstream processing machinery.

  • Built for Harsh Environments

Rugged carbon or stainless-steel construction ensures durability and longevity, even in demanding industrial or food-processing applications.



Ceramic Carbon or Stainless Steel Injection Molding Drawer Magnet Product Details

How It Works
How It Works

The Carbon and Stainless-Steel Drawer Magnets (CDM & SDM) are designed to provide continuous magnetic protection for processing equipment by effectively capturing ferrous contaminants from dry, free-flowing materials. These units are installed between the feed hopper and machine throat openings, ensuring clean and contaminant-free material flow into downstream processing equipment.

How MPI’s Continuous Flow Self-Clean Drawer Magnets Work

Each drawer magnet unit consists of a robust housing containing one or more rows of high-intensity magnetic tubes. As materials such as plastic resin, powders, or granules flow through the unit:

  • The strong permanent magnetic tubes generate an intense magnetic field, attracting and capturing tramp metal contaminants, including screws, metal shavings, and fine iron particles.
  • The clear polycarbonate drawer face allows operators to visually monitor both material flow and contaminant accumulation, ensuring efficient separation and timely maintenance.

To maintain peak performance, operators must periodically remove trapped contaminants from the magnetic tubes. This simple manual cleaning process involves:

  1. Loosening the quick-release swing bolt latches – This allows easy access to the magnetic drawer assembly.

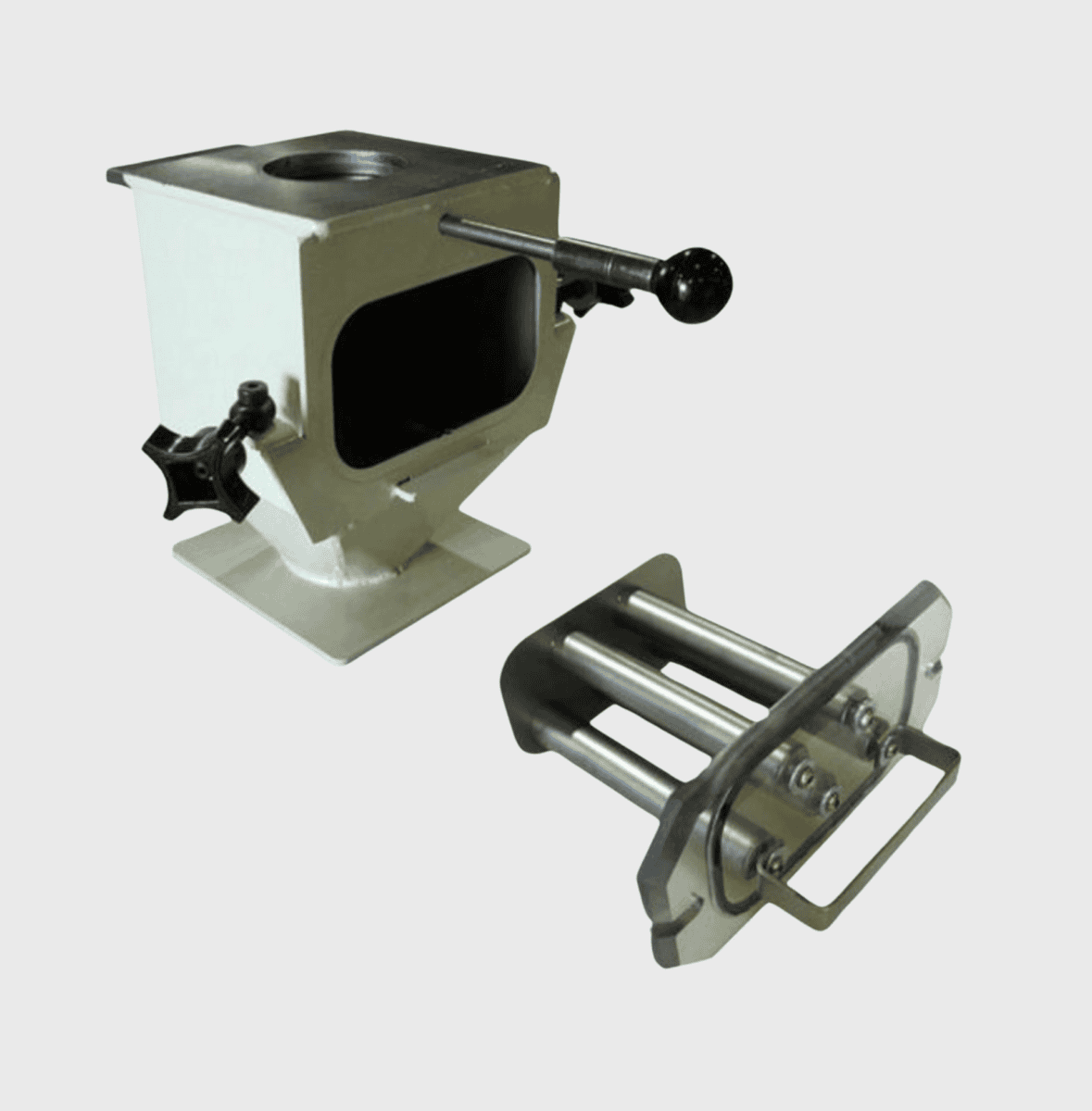

  2. Sliding out the magnet drawer – The entire assembly is carefully pulled out for cleaning.
  3. Removing trapped contaminants – The ferrous particles collected on the magnetic tubes are manually wiped or scraped off.
  4. Repositioning the drawer assembly – Once cleaned, the magnet drawer is slid back into place and securely latched for continued operation.

This efficient, tool-free cleaning process ensures uninterrupted material flow while maintaining the highest level of metal contamination control.

Product Options
Related Resources and Technical Information

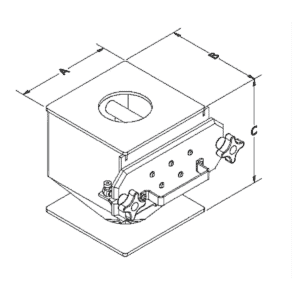

Ceramic Carbon or Stainless Steel Injection Molding Drawer Magnet Specification Table

Carbon or Stainless-Steel Drawer Magnet
US Customary Units
CARBON OR STAINLESS-STEEL DMU MODEL # (A) WIDTH (IN.) (B) LENGTH (IN.) (C) HEIGHT (IN.) MIN. DIAMETER (IN.) MAX. DIAMETER (IN.) # OF MAGNETIC TUBES APPROX. WEIGHT (LBS)
CDM-444.3754.3759.51.383334
CDM-666.3756.3759.523.5548
CDM-888.3758.3759.53.54.5764
CDM-101010.37510.3759.54.6256.5968

Carbon or Stainless-Steel Injection Molding Drawer Magnet Installations

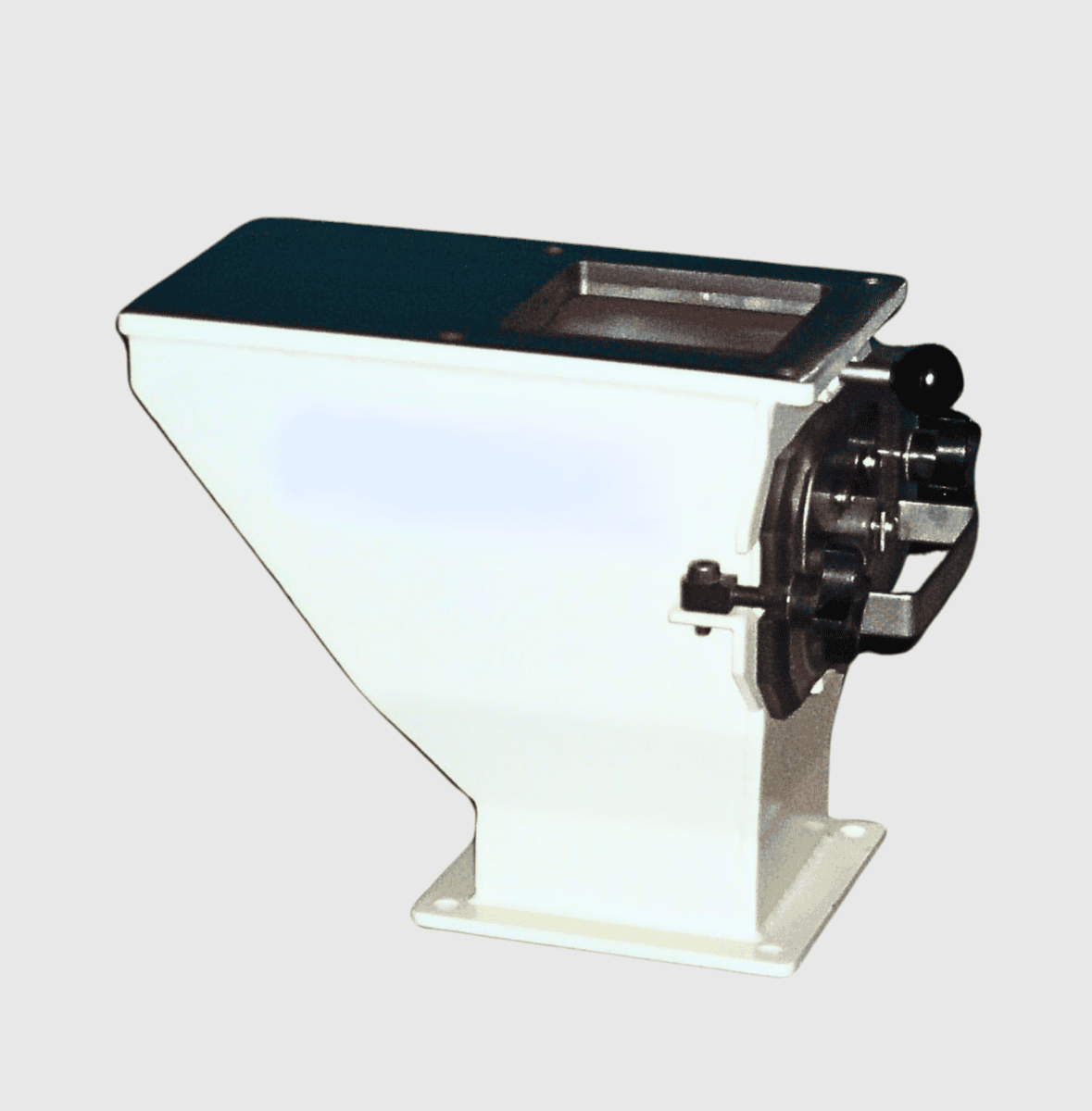

Carbon Drawer Magnet for Heavy-Duty Plastic Regrinding

Carbon Drawer Magnet for Heavy-Duty Plastic Regrinding

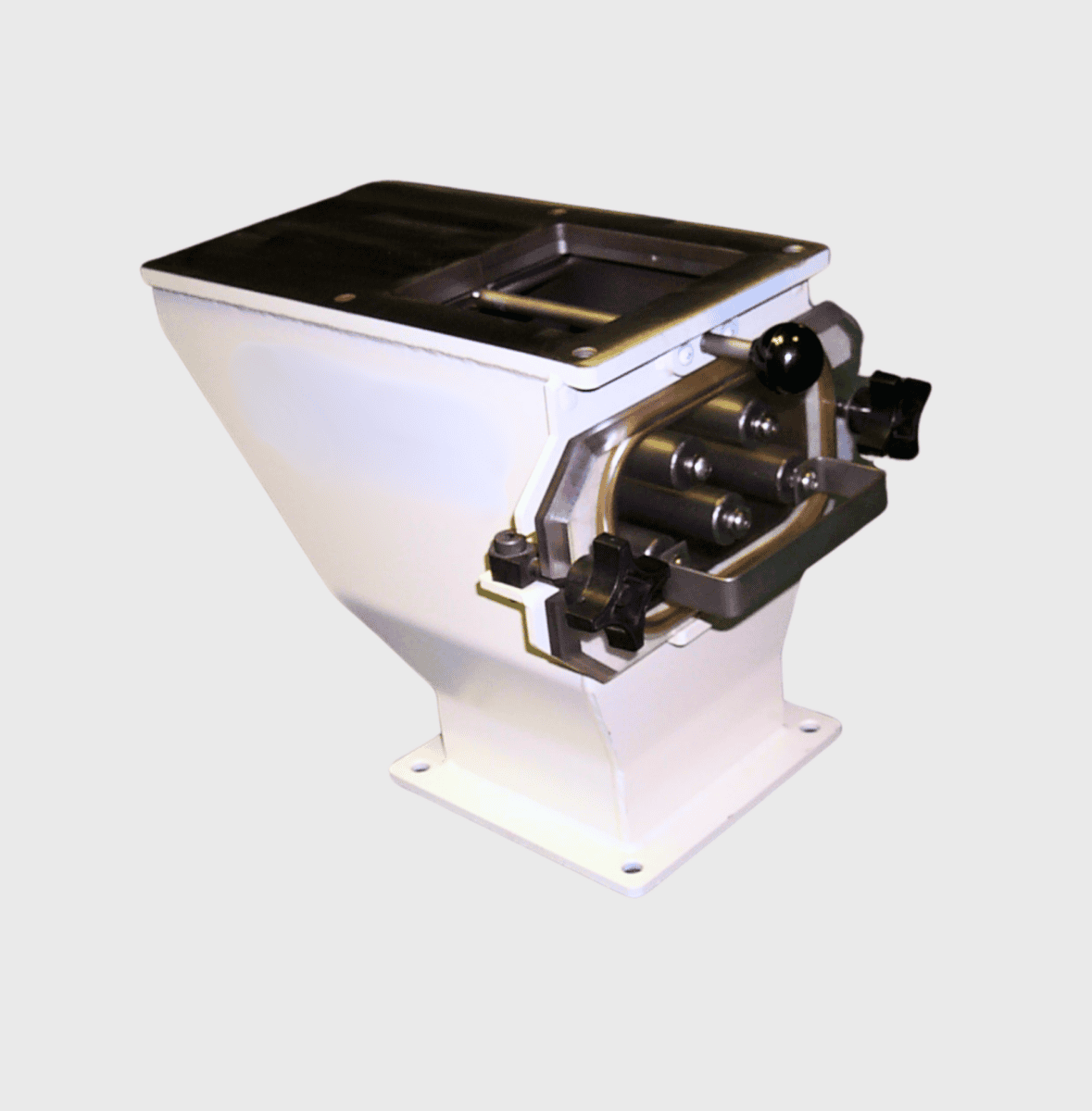

Carbon Drawer Magnet for Plastic Pellet Processing

Carbon Drawer Magnet for Plastic Pellet Processing

Carbon Drawer Magnet for Application with Extreme Contamination Levels

Carbon Drawer Magnet for Application with Extreme Contamination Levels
