Dual-Function Efficiency for High-Performance Processing

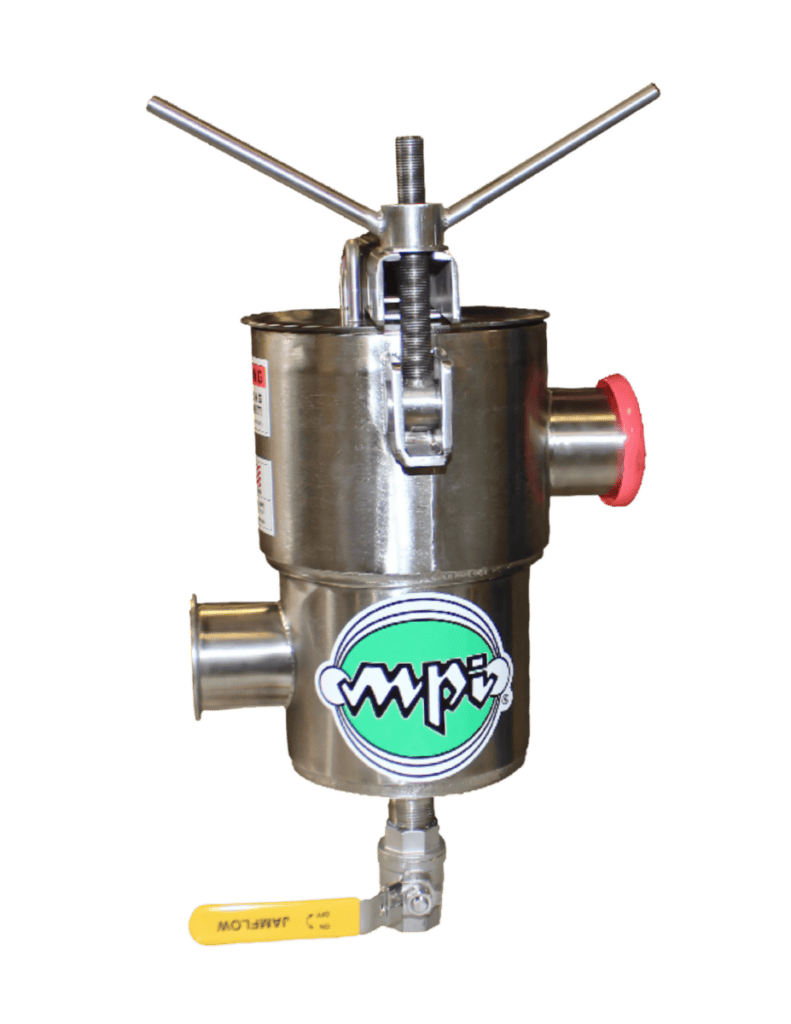

Magnetic Products Inc. (MPI) Combination Tube and Screener Liquid Trap Magnets are engineered to efficiently eliminate ferrous contaminants from liquids, slurries, and semi-liquid materials while also screening out larger particles. By merging robust magnetic separation with built-in screening capabilities, these systems guarantee optimal product purity and protection of equipment. They are particularly well-suited for sectors such as food processing, pharmaceuticals, chemicals, and manufacturing, providing dual-function efficiency in challenging environments. This design combines a Liquid Tube Magnet with a screener basket for improved filtration, effectively separating both metallic contaminants and larger particulates.
Magnetic Products Inc. (MPI) Combination Tube and Screener Liquid Trap Magnets are engineered to deliver superior ferrous contamination removal from liquids, slurries, and semi-liquid materials while simultaneously screening out larger non-magnetic particulates. By integrating robust magnetic separation with an advanced screening mechanism, these innovative systems ensure optimal product purity, protect processing equipment, and enhance operational efficiency.
Designed for industries such as food processing, pharmaceuticals, chemicals, and manufacturing, MPI’s Combination Tube and Screener Liquid Trap Magnets combine a high-powered Liquid Tube Magnet with a screener basket for enhanced filtration. This dual-action system effectively separates both metallic contaminants and larger solid particulates, reducing product waste and safeguarding downstream equipment.
Benefits of the Liquid Processing Combo Tube and Screener Design Magnet From Magnetic Products, Inc
-
Combination Tube Magnets
Removes ferrous contaminants from liquid and semi-liquid material streams. Ensures consistent product quality in high-flow systems.
-
Integrated Screener Systems
Screens out larger particulates and debris, protecting magnetic components and downstream equipment. Ideal for applications requiring simultaneous separation and screening.
-
Dual-Function Design
Combines magnetic separation and particulate screening for enhanced contaminant control.
-
High-Intensity Magnetic Tubes
Rare-earth magnets ensure effective removal of ferrous contaminants, including fine particles.
-
Easy Manual Cleaning & Maintain
Simple and quick cleaning process reduces downtime and ensures operational efficiency. Quick-release clamps and accessible components simplify cleaning and reduce downtime.
-
Durable Stainless-Steel Construction
Provides long-lasting performance and corrosion resistance in harsh environments.
-
Hygienic Design
Smooth surfaces and FDA-compliant materials for use in food and pharmaceutical industries.
-
Customizable Configurations
Designed to fit specific flow rates and processing requirements.
Liquid Processing Combo Tube and Screener Design Magnet Product Details
The MPI Combination Tube and Screener Liquid Trap Magnet is a high-efficiency filtration system designed to remove both ferrous metal contaminants and non-magnetic particulates from liquid and slurry-based processing lines. By integrating powerful magnetic separation with a built-in screening mechanism, this system ensures continuous product purity, protects processing equipment, and enhances operational efficiency.
- Product Flow & Contaminant Capture
-
- As the liquid or slurry is pumped through the system, it encounters a high-powered magnetic field generated by either an array of 1” diameter magnetic tubes or a single 3” diameter magnetic tube (depending on model configuration).
- Ferrous contaminants are attracted and securely held behind the tubes, following the direction of product flow to prevent tramp metal wash-off.
- Simultaneously, non-magnetic particles and larger debris are captured in a removable stainless-steel basket strainer, preventing them from entering downstream equipment.
- Continuous Protection & Performance
- The system maintains a steady flow while effectively filtering metal and particulate contamination, ensuring uninterrupted operation and compliance with safety and quality standards.
- The integration of both magnet and screener into a single housing minimizes system complexity and reduces maintenance time by consolidating two essential filtration functions into one unit.
- Quick & Easy Cleaning
- When cleaning is required, quick-release clamps allow operators to easily access the magnetic tubes and strainer for fast, efficient removal of collected contaminants.
- The removable basket strainer simplifies maintenance and enables customized screen sizes, which can be tailored for specific application requirements.
Key Design Features & Benefits:
- Combination Magnet & Basket Strainer in One Assembly
- Reduces maintenance time by allowing operators to check one system for both ferrous and non-ferrous contamination.
- Standard & Custom Inlet/Outlet Sizes
- Available in 1.5” to 4” diameter configurations to seamlessly integrate into existing processing lines.
- Multiple Connection Options for Easy Installation
- Compatible with sanitary tri-clover, threaded, or ANSI 150-pound flanges for simple and secure installation.
- Metal-Detectable Magnet Housing Gasket (Buna Material)
- Enhances safety compliance in food processing applications.
- High-Pressure & High-Temperature Operation
- Engineered to withstand up to 80 PSI at 70°F and operate in temperatures up to 356°F (depending on model configuration).
By combining powerful magnetic separation with efficient particle screening, MPI’s Combination Tube and Screener Liquid Trap Magnet ensures superior contaminant removal, prolongs equipment life, and safeguards product integrity in demanding processing environments.

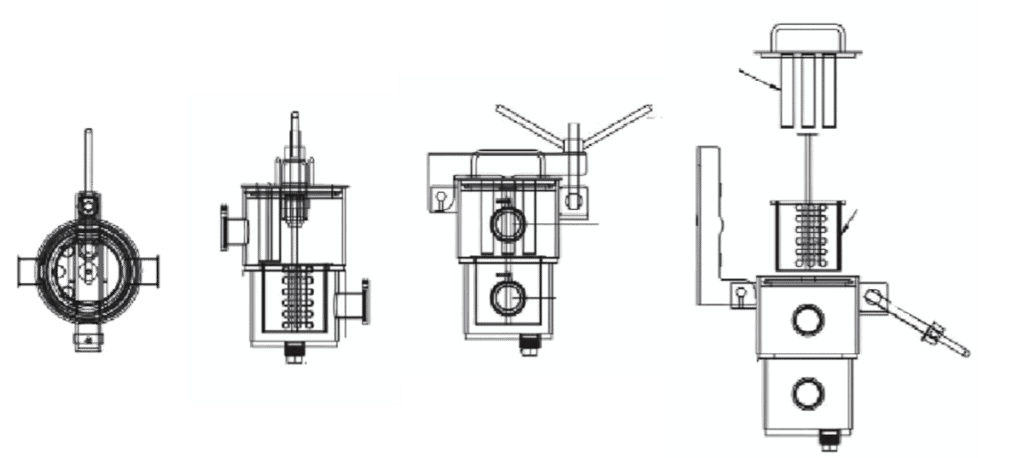

Liquid Processing Combo Tube and Screener Design Magnet Specification Table
US Customary Units
| TRIPLE ROD TRAP AND SCREENER MAGNET MODEL # | INLET (IN.) | OUTLET (IN.) | OVERALL LENGTH (IN) | CENTER TO CENTER (IN.) |
|---|---|---|---|---|
| TW-1 | 1 | 1 | 11 | 5.78 |
| TW-2 | 2 | 2 | 11 | 5.78 |
| TW-3 | 3 | 3 | 11 | 5.78 |
| TW-4 | 4 | 4 | 11 | 5.78 |
Liquid Processing Combo Tube and Screener Design Magnet Installations and Variations

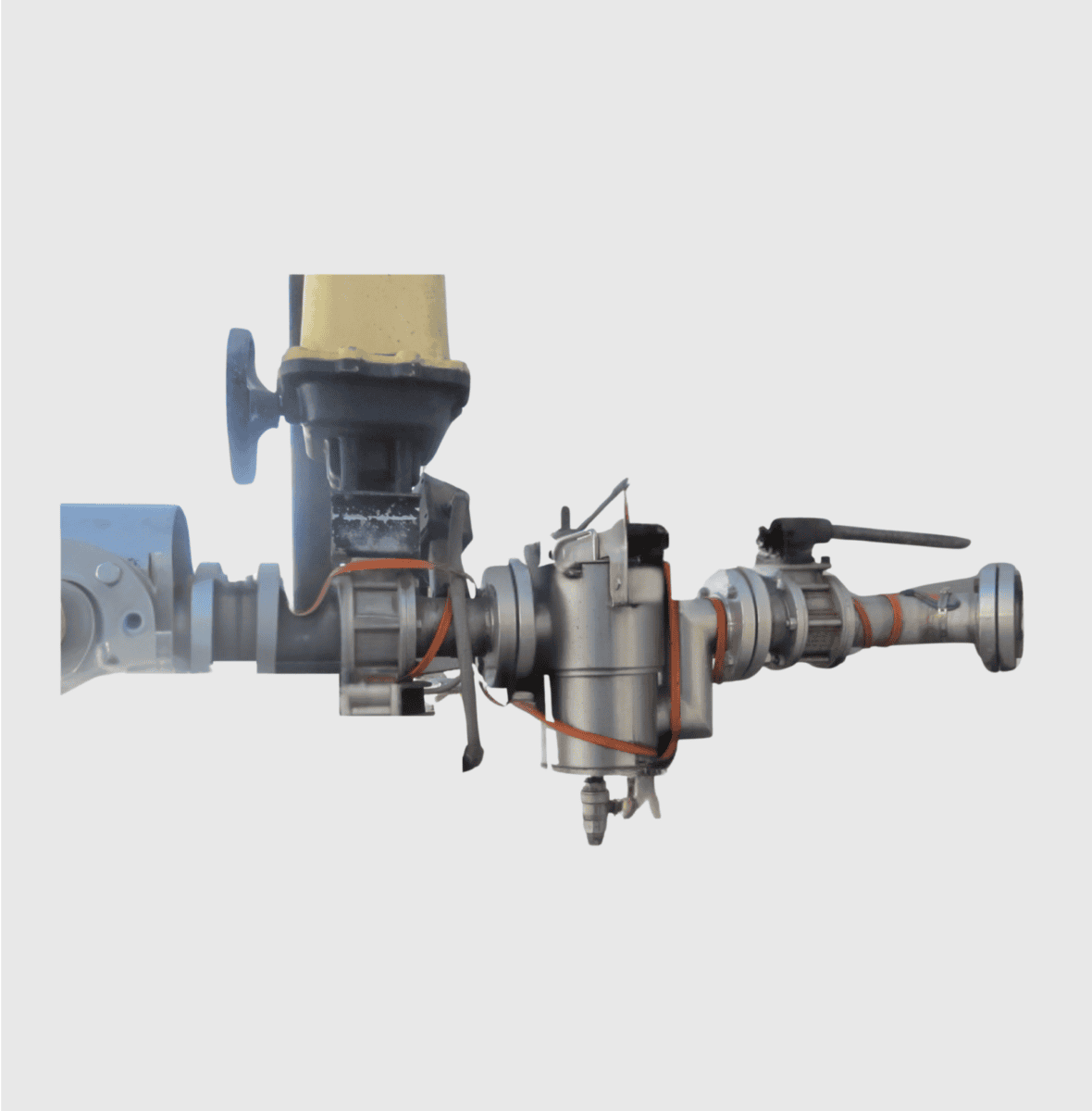

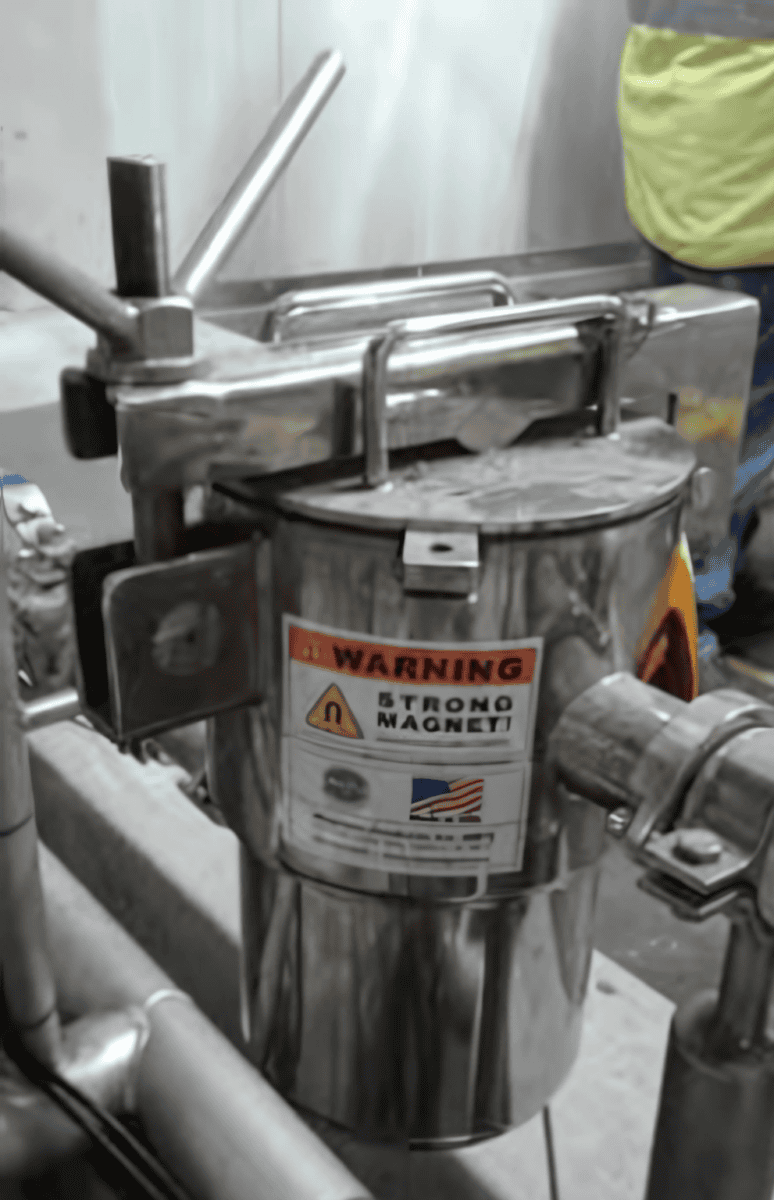

Triple Rod Trap and Screener Magnet for Pharmaceutical Liquid Formulations and Semi-Liquid Products

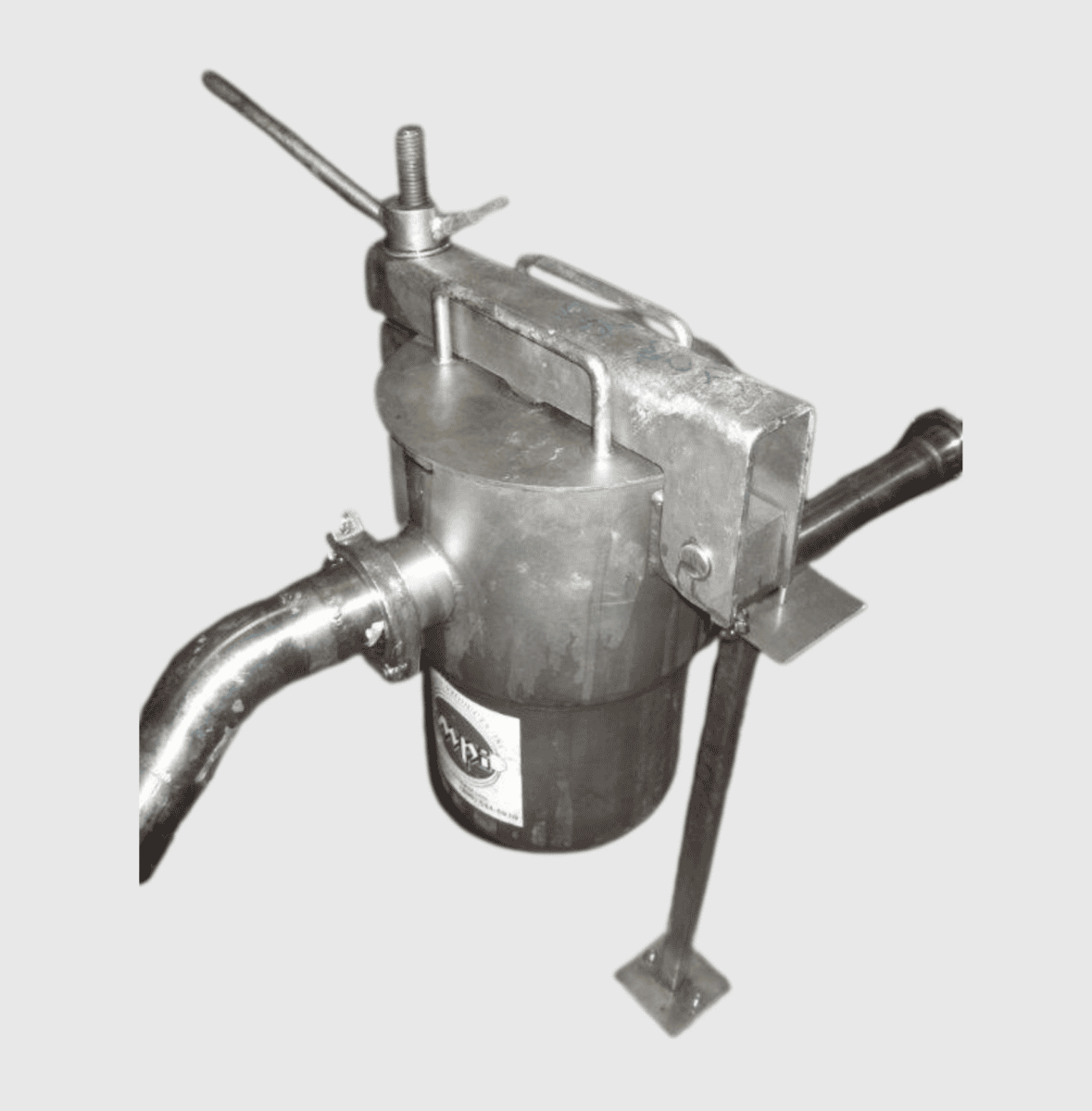

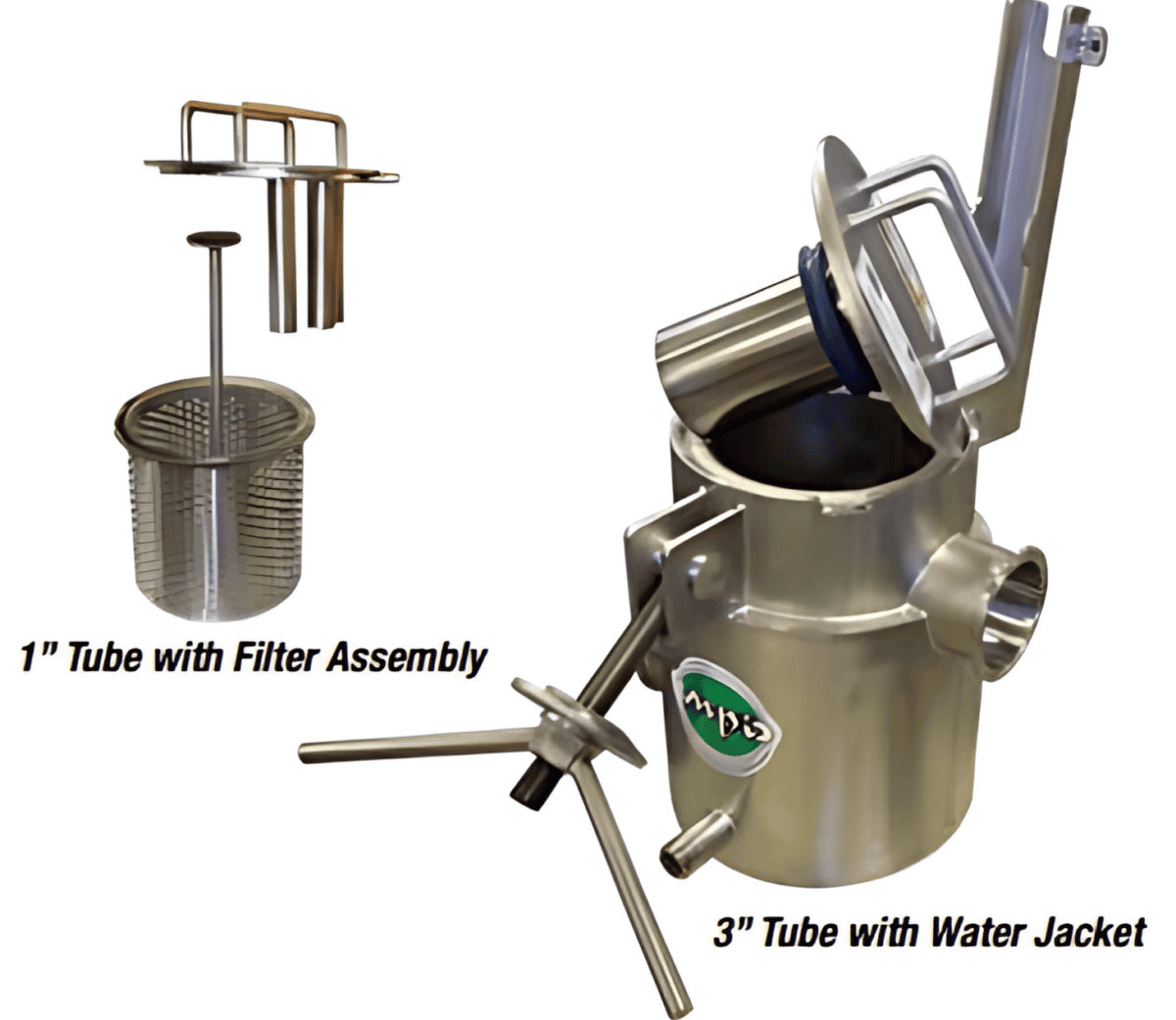

Triple Rod Trap and Screener Magnet for Removing ferrous Contaminants and Solid Particulates in Chemical Manufacturing

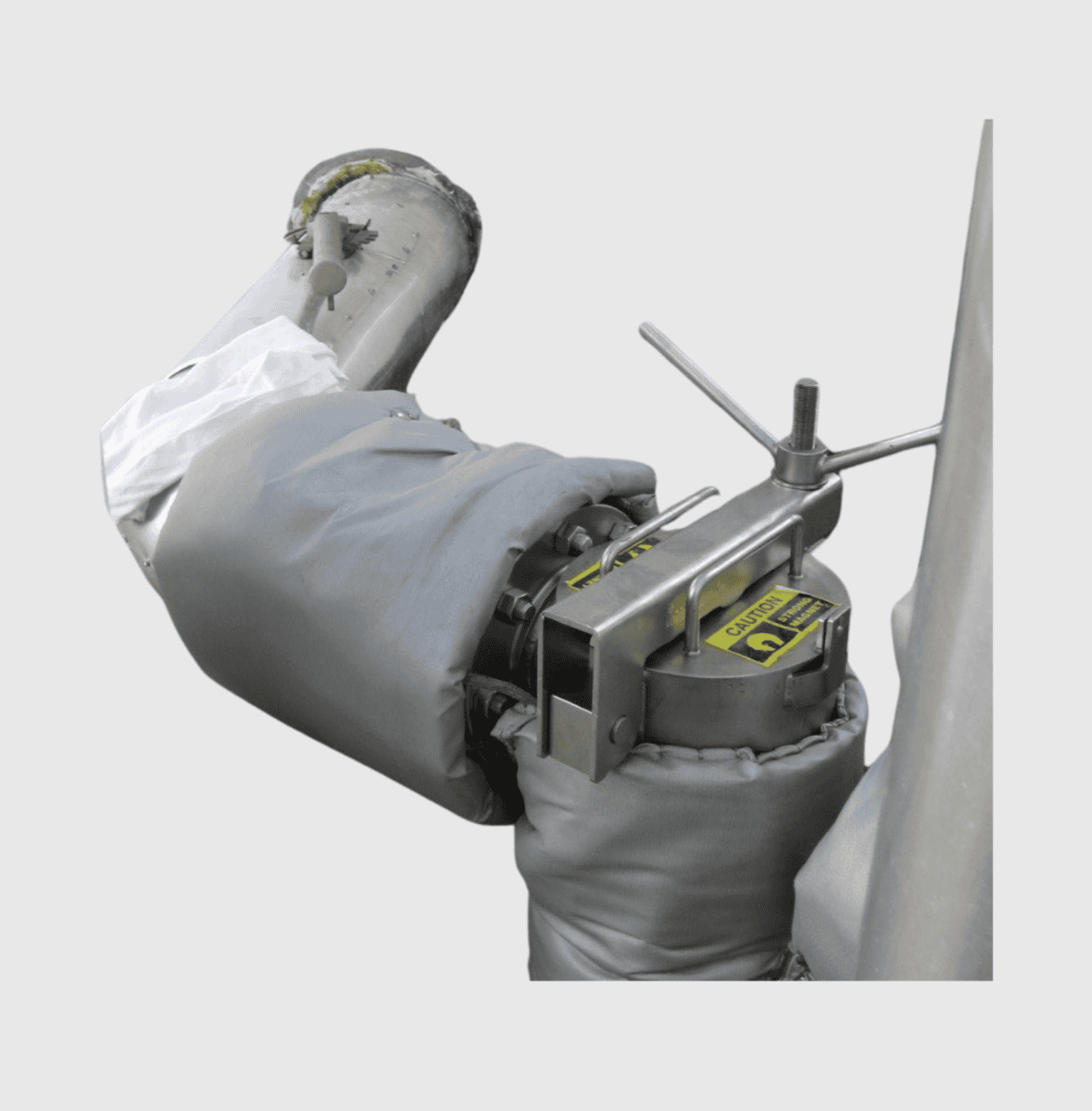

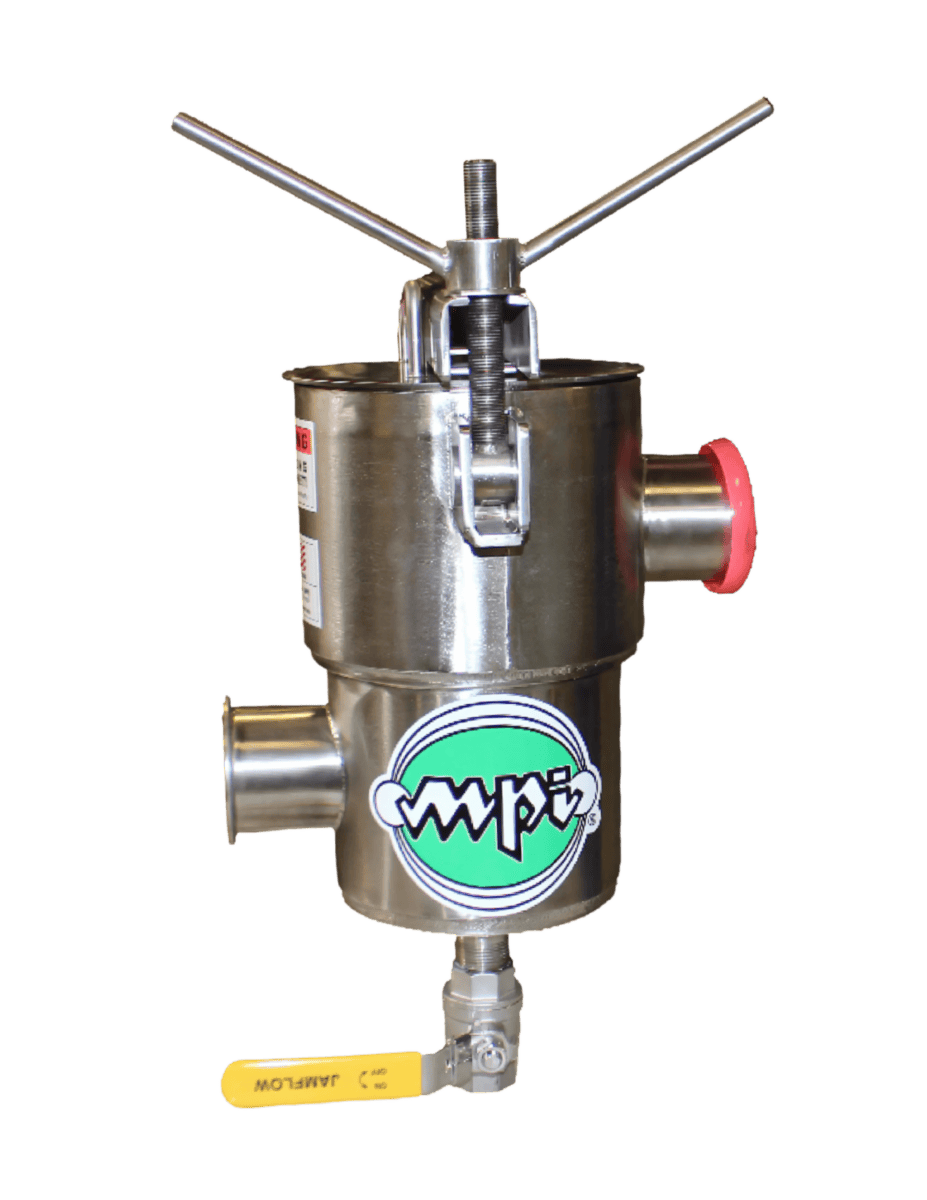

Triple Rod Trap and Screener Magnet Enhances Operational Efficiency by Combining Magnetic Separation with Particle Screening in Industrial Processing
