Extreme Condition Purification of Liquids and Wet Separation

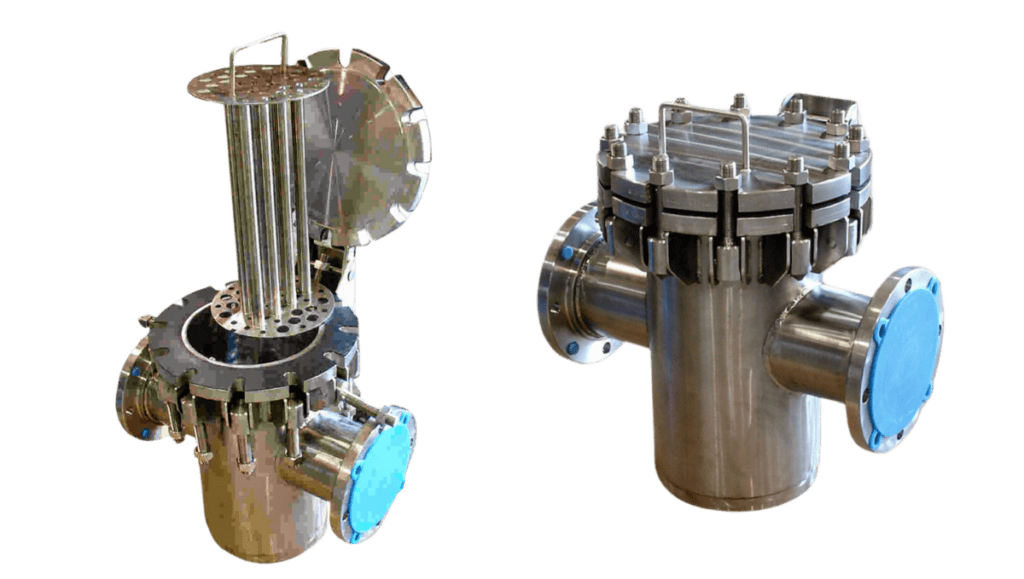

Magnetic Products Inc. (MPI) High-Pressure Liquid Trap Magnets are designed to effectively eliminate ferrous contaminants from liquids, slurries, and semi-liquid materials in high-pressure processing systems. These magnets are constructed to endure extreme operating pressures, ensuring reliable contaminant management in challenging conditions. They are particularly suited for industries such as food and beverage, pharmaceuticals, chemicals, and manufacturing, guaranteeing product purity, protecting equipment, and meeting rigorous industry standards. They are specifically built for high-pressure environments in chemical processing, food production, and paper milling, efficiently removing ferrous contaminants while maintaining product consistency.
Benefits of the Liquid Processing High-Pressure Tube Magnet From Magnetic Products, Inc
-
High-Pressure Performance
Built to withstand pressures up to 1,000 PSI, ensuring reliable operation in demanding processing environments.
-
Powerful Magnetic Separation
High-intensity rare-earth or ceramic magnets effectively capture fine and coarse ferrous contaminants, preventing metal wash-off and re-entry into the product flow.
-
Durable Stainless-Steel Construction
100% corrosion-resistant stainless steel ensures long-lasting performance in high-pressure and hygienic environments.
-
Reliable Equipment Protection
Prevents metal contamination, reduces equipment wear, and minimizes downtime, ensuring consistent product quality and system longevity.
-
Hygienic, FDA-Compliant Design
Smooth surfaces and food-grade materials make it ideal for use in food, pharmaceutical, and chemical processing industries.
-
Effortless Cleaning & Maintenance
Quick-release clamps allow for easy removal and cleaning of the magnetic element, while an integrated non-magnetic sump captures additional contaminants.
-
Customizable Configurations
Available in multiple inlet/outlet sizes, flow rate capacities, and connection options (bevel seat, pipe thread, weld-end) to suit specific processing needs.
-
Optimized Flow & Efficiency
Designed to maintain optimal flow rates without restricting product movement, ensuring smooth, uninterrupted operation.
Liquid Processing High-Pressure Tube Magnet Product Details
How It Works
MPI High Pressure Liquid Trap Magnets are engineered for inline installation within high-pressure processing systems, ensuring efficient ferrous contamination removal while maintaining optimal pressure and flow rates. These units are essential for safeguarding product purity, protecting pumps and processing equipment, and enhancing operational efficiency across industries such as chemical processing, food production, and paper milling.
Ensuring Product Purity & Equipment Protection
MPI High-Pressure Liquid Trap Magnets provide superior metal separation and system protection in demanding processing applications. By effectively capturing ferrous contaminants, these units prevent equipment wear, reduce downtime, and maintain product integrity across various industries.
Contaminant Capture
- As the liquid or slurry flows through the unit, it passes around and through a series of high-intensity magnetic tubes housed within the trap.
- Ferrous contaminants are attracted to the powerful magnetic surface and securely retained on the downstream side of the tubes. This strategic placement prevents tramp metal “wash-off”, ensuring that contaminants remain trapped even under continuous flow conditions.
- The high-pressure design (up to 150 PSI at 120°F) ensures that contamination removal occurs without restricting flow rates or disrupting the overall system performance.
Separation of Non-Magnetic Particles
- While ferrous contaminants adhere to the magnetic tubes, non-magnetic particles are naturally separated by gravity and collected in a sump located beneath the magnetic element.
- This additional mechanical filtration enhances overall system efficiency by removing both magnetic and non-magnetic contaminants.
Routine Cleaning & Maintenance
- MPI’s quick-release clamp system allows for fast and easy access to the magnetic tubes and sump for regular cleaning.
- Operators can easily remove captured contaminants, ensuring continued peak system performance and preventing potential blockages or reduced efficiency.
- The all stainless-steel construction ensures durability, corrosion resistance, and compliance with industry hygiene standards.
Liquid Processing High-Pressure Tube Magnet Specification Table
US Customary Units
| LFT-HP MODEL # | (A) INLET/OUTLET (IN.) | (B) OVERALL HEIGHT (IN.) | (C) OVERALL LENGTH (IN) | (D) HOUSING DIAMETER (IN.) |
|---|---|---|---|---|
| LFT-3 | 3 | 24 | 23.188 | 10 |
| LFT-4 | 4 | 24 | 23.188 | 10 |
| LFT-5 | 5 | 26 | 23.188 | 10 |
| LFT-6 | 6 | 26 | 23.188 | 10 |
| LFT-8 | 8 | 32 | 26.000 | 16 |
| LFT-10 | 10 | 32 | 29.812 | 18 |
Liquid Processing High-Pressure Tube Magnet Installations and Variations
High-Pressure Liquid Finger Trap Used in Processing Engineered Plastics
High-Pressure Liquid Finger Trap Used in Sugar Processing
High-Pressure Liquid Finger Traps Engineered for Pressurized Slurry System Operating Under Extreme Conditions
