For Packaged Goods - X-Ray

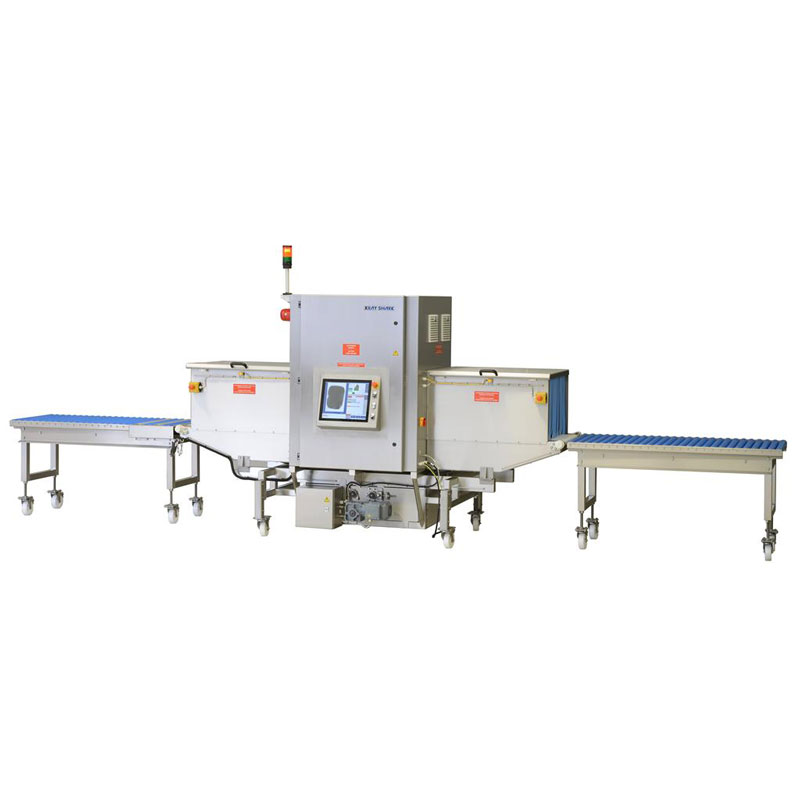

For Packaged Goods - X-Ray

The Packaged Products X-Ray is ideal for packaged food or non-food products in big size

...read more

  • X-Ray detector diode size 0.8 mm, optional 0.4 and 0.2 mm
  • X-ray source is 1 pc. high power x-ray generator, with max. 120kV (400W), variable in voltage + current, integrated closed oil cooling circuit
  • Polyurethane belt white (FDA) conveyor
  • Conveyor speed by product 30-60 m/min

X-Ray inspection is sorting based on product density. An X-Ray inspection machine takes an image that is pixel based. The machine compares pixel density to stored pictures of “good” product to detect defects and contaminants. If the density of a product falls outside of acceptable range the reject mechanism removes the contaminated product out of the product flow.

X-Ray specifications vary per unit. Download the Datasheet for system details. Contact MPI to discuss your application.

Optional reject systems include, but not limited to:

  • Push Arm
  • Air Blast
  • Multiple Lane
  • Flap at Belt End

Additional options:

  • Lockable Reject Bin
  • Curtainless systems including extended infeed/outfeed tunnels
