Industry Benchmark for Performance

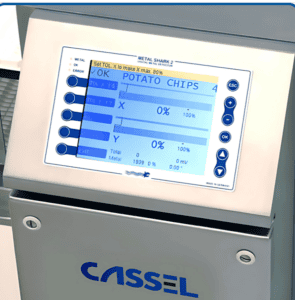

The MPI Metal Shark® 2 Controller is a next-generation digital control unit that powers MPI’s advanced metal detection systems with unmatched precision, flexibility, and ease of use. Designed for demanding industrial environments—from food and pharmaceutical production to plastics and recycling—the Metal Shark® 2 leverages a powerful digital signal processor, intelligent noise filtering, and adaptive product compensation algorithms to deliver ultra-reliable metal detection across various applications.
Its intuitive, multilingual touchscreen interface simplifies setup, while its multi-frequency capability ensures optimized detection of ferrous, non-ferrous, and stainless-steel contaminants in dry and wet product environments. With built-in connectivity, integrated diagnostics, and compatibility with SharkNet® software, the Metal Shark® 2 enables full traceability, audit readiness, and real-time quality control from a centralized platform.
Benefits of the Metal Shark 2 Controller From Magnetic Products, Inc
Multi-Frequency Digital Processing
It automatically selects the optimal frequency for each product, ensuring highly sensitive and stable detection of all metal types—even in products with high moisture, salt, or temperature variation.
Advanced Noise Filtering & Compensation
It is equipped with digital noise filters, balance control, and auto-compensation for challenging environments such as vibrating conveyors, high-load applications, or dense product flows.
High-Capacity Product Memory

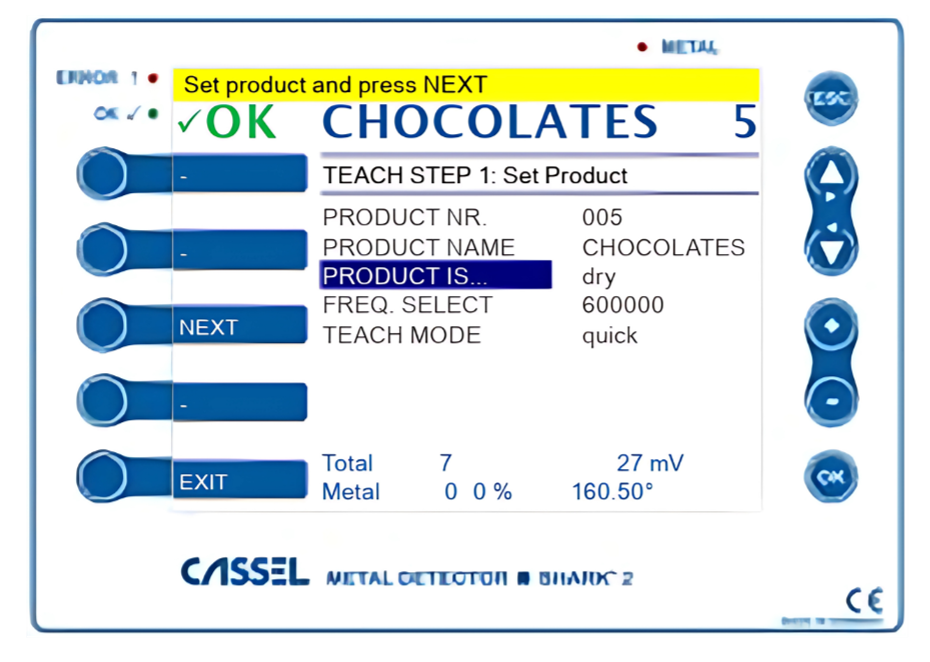

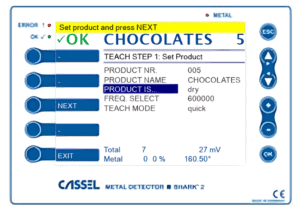

Stores up to 120 product profiles with Teach Assistant support, enabling fast product changeover and repeatable, validated performance across multiple lines or SKUs.

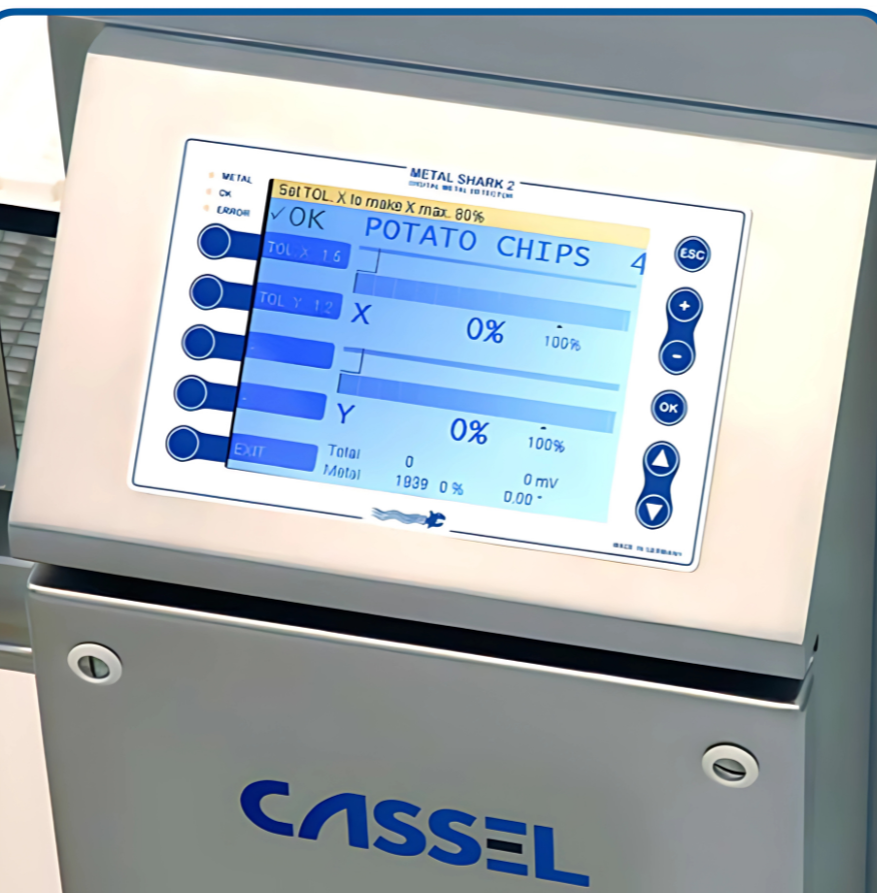

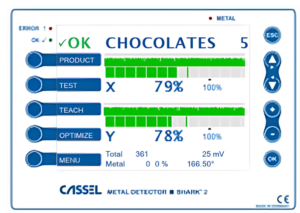

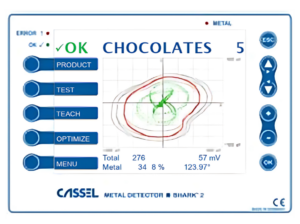

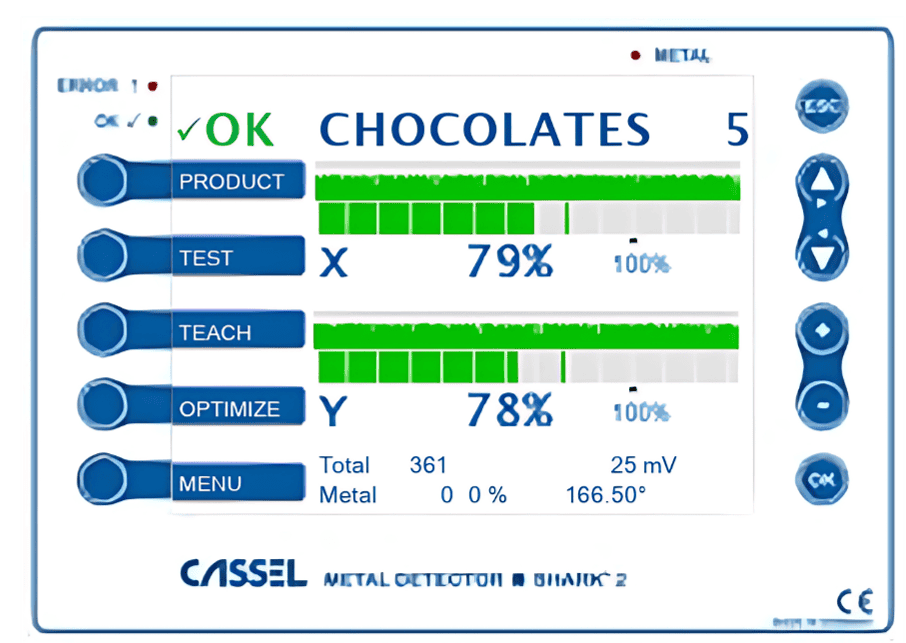

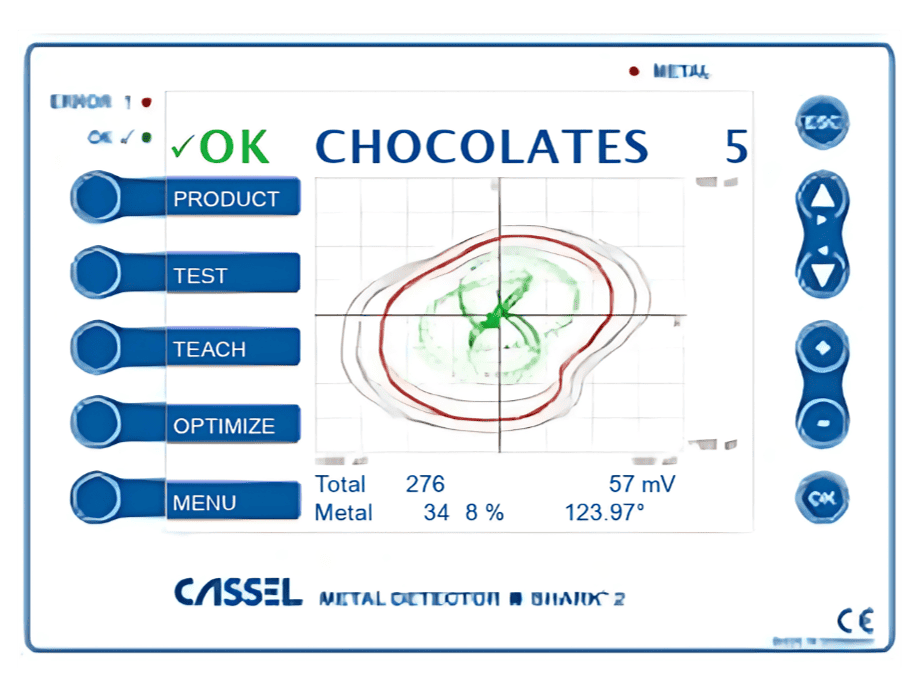

User-Friendly Touchscreen Interface
Intuitive color display with graphical feedback, auto-setup wizards, multilingual support, and password protection for easy operation and secure access control.
Real-Time Diagnostics & Auto-Self Test
Continuously monitors system performance, executes automatic self-checks, and logs errors for proactive maintenance and quality assurance.
Flexible I/O & Integration
Includes configurable 24 VDC inputs/outputs for connection to encoders, reject mechanisms, alarms, and conveyor logic, supporting seamless integration into automated lines.

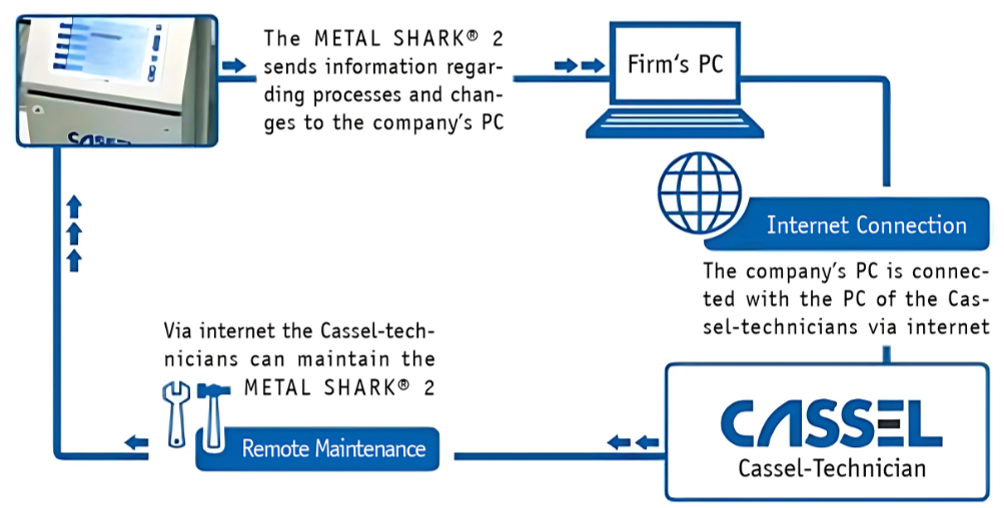

SharkNet® Connectivity for Compliance
Optional SharkNet® software enables remote monitoring, report generation, validation tracking, and 21 CFR Part 11 audit trail compliance for regulated industries.
Robust & Scalable for Any Application

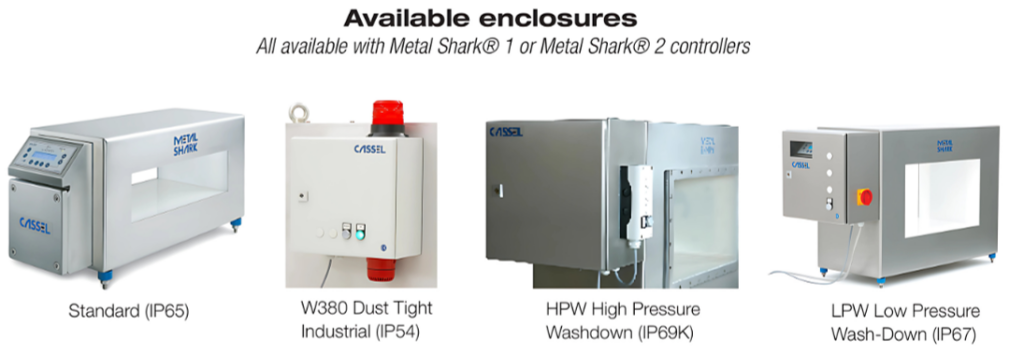

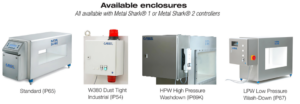

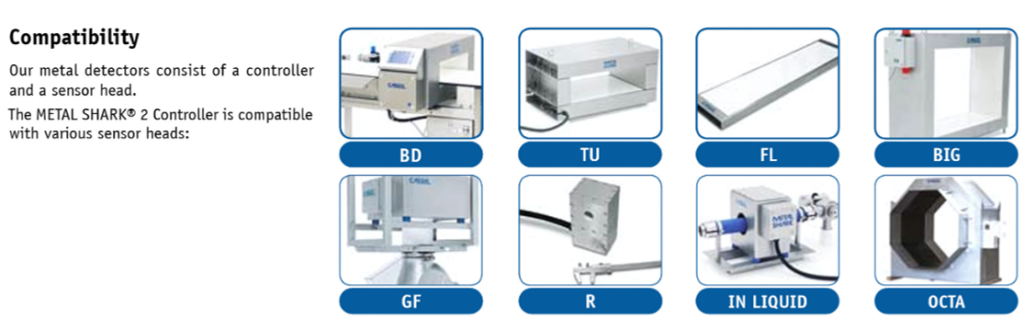

Supports a wide range of detector coil types (gravity, conveyor, pipeline, etc.) and is rated for use in standard, washdown, or hygienic environments with IP65+ enclosures.
Metal Shark 2 Controller Product Details
How It Works
The Metal Shark® 2 Controller is the intelligence hub of MPI’s metal detection systems. It interfaces with detection coils mounted in gravity, belt, or pipeline configurations and manages the electromagnetic field that scans for metallic contaminants.

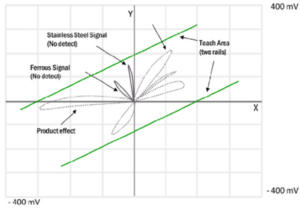

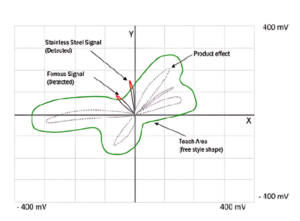

As product flows through the coil, the controller continuously monitors for disturbances in the electromagnetic field. The controller’s signal processor digitizes and analyzes these disturbances, applying noise filtering, balance correction, and frequency optimization algorithms. A signal exceeding the calibrated threshold is classified as a contaminant event.
The controller then triggers one or more outputs—such as activating a reject mechanism, pausing the line, or issuing an alert—and logs the event. Operators can view the touchscreen's real-time system status, product data, and rejection logs. With SharkNet® connectivity, QA managers can monitor the system remotely, generate validation reports, and ensure full traceability across the facility.
Metal Shark 2 Controller Specification Table
US Customary Units

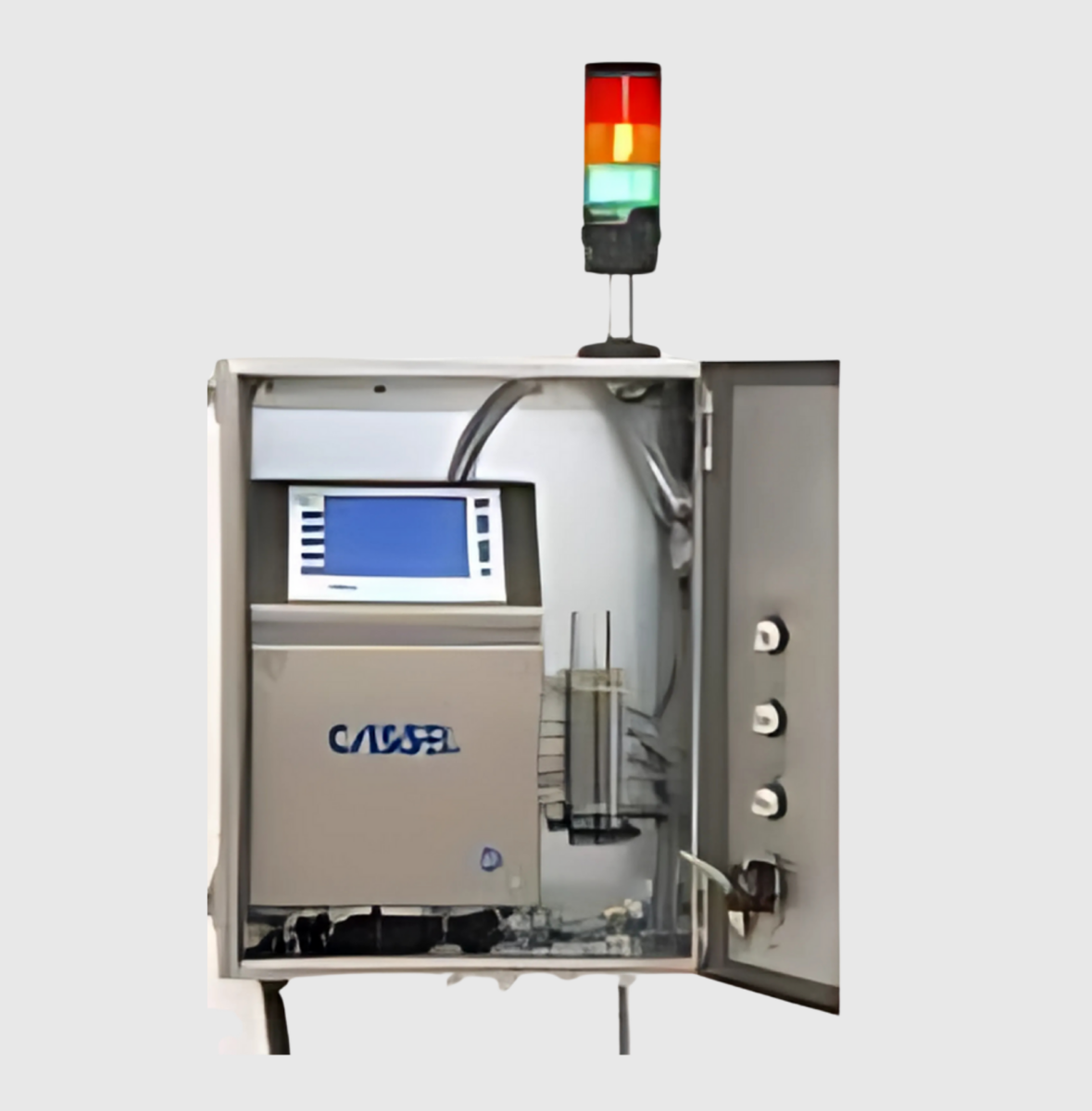

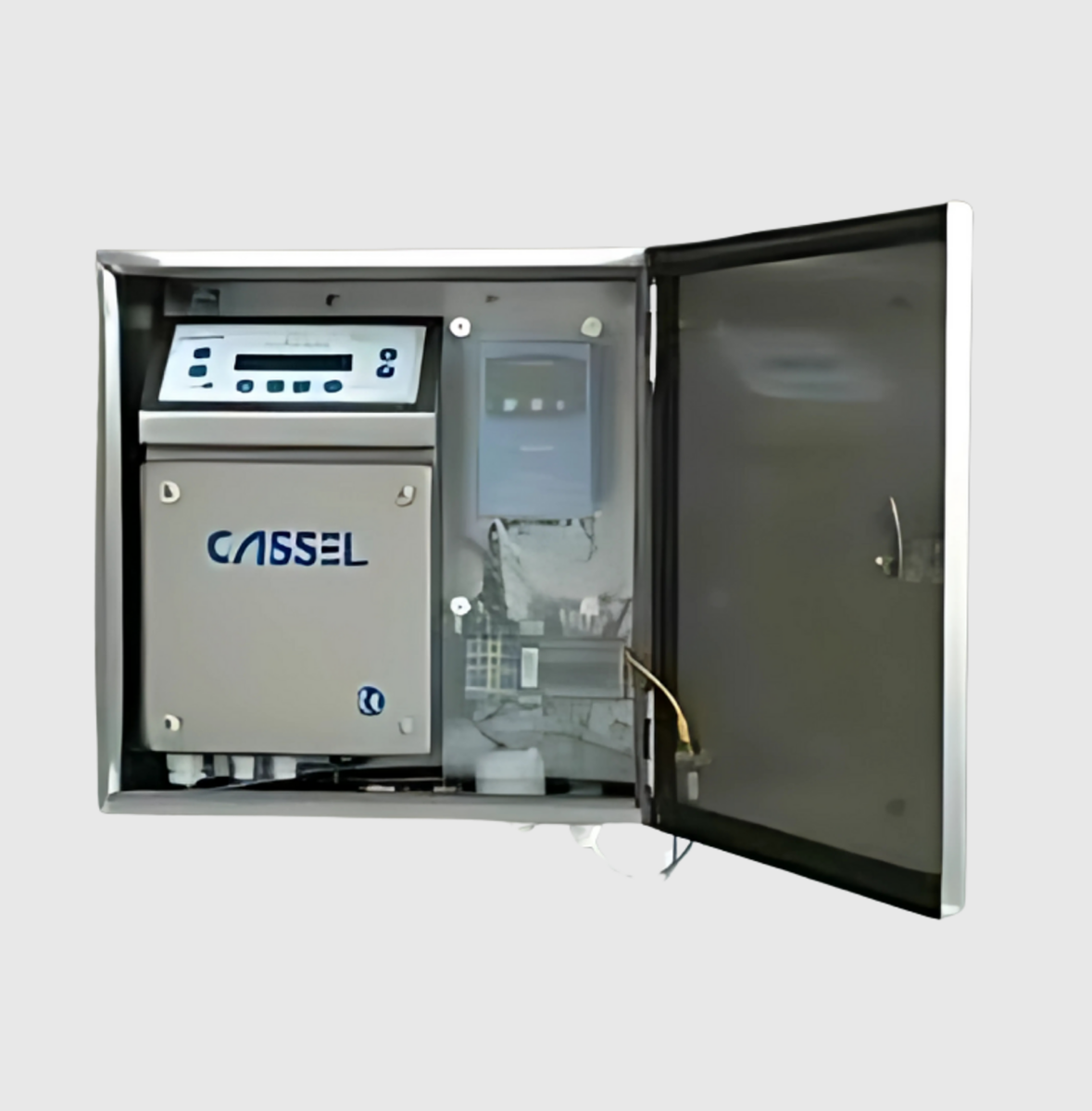

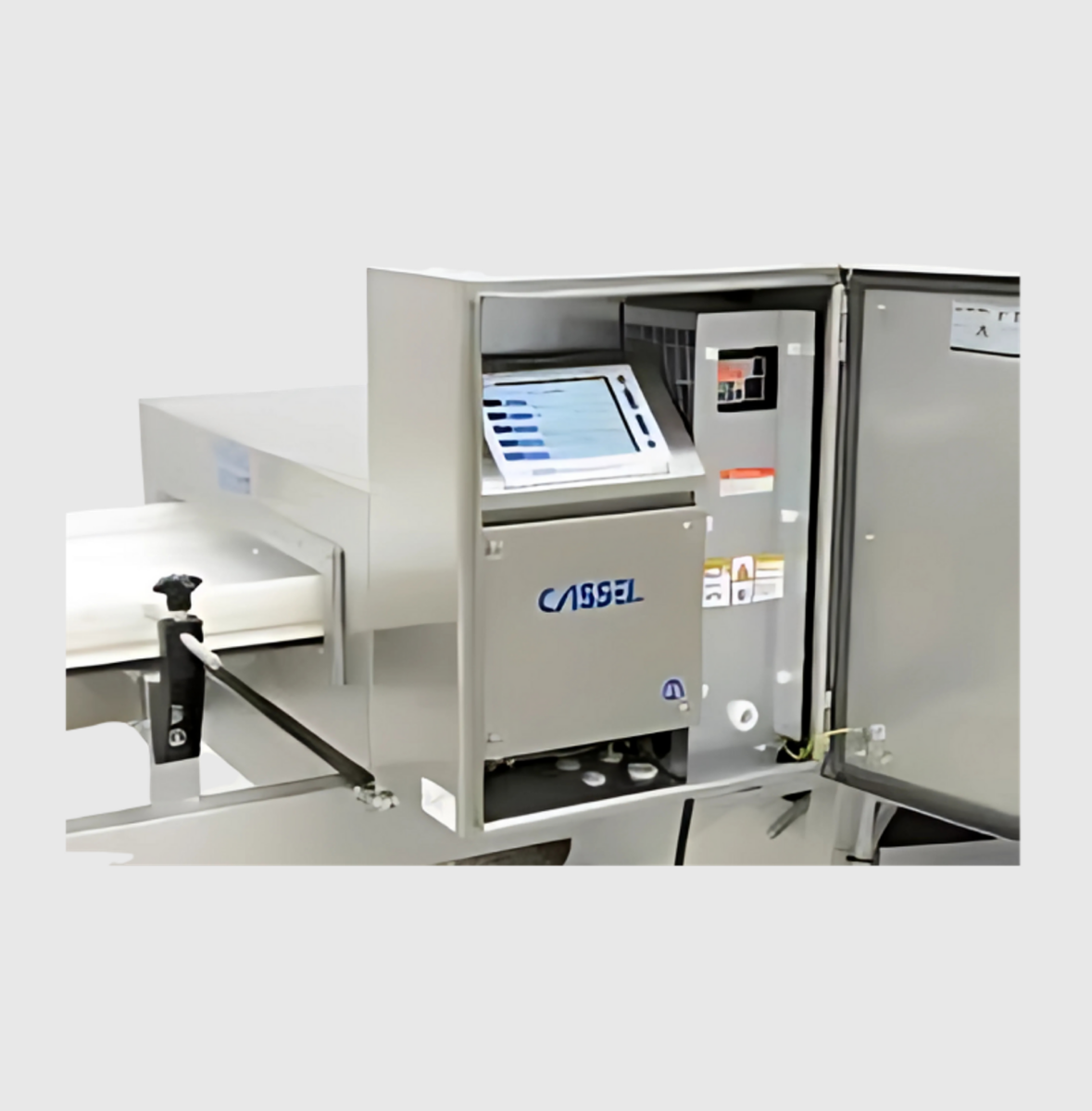

Metal Shark 2 Controller Installations & Variations
We operate under the philosophy of The Game of Work.

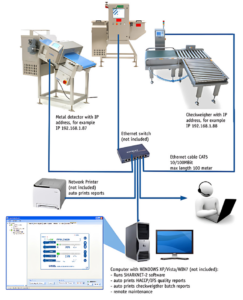

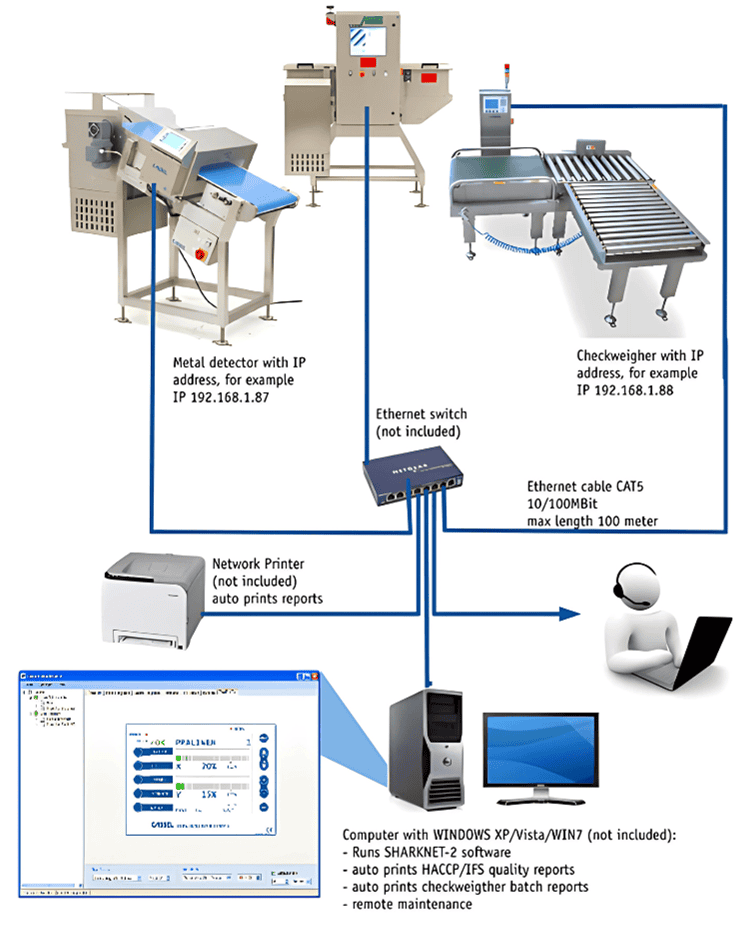

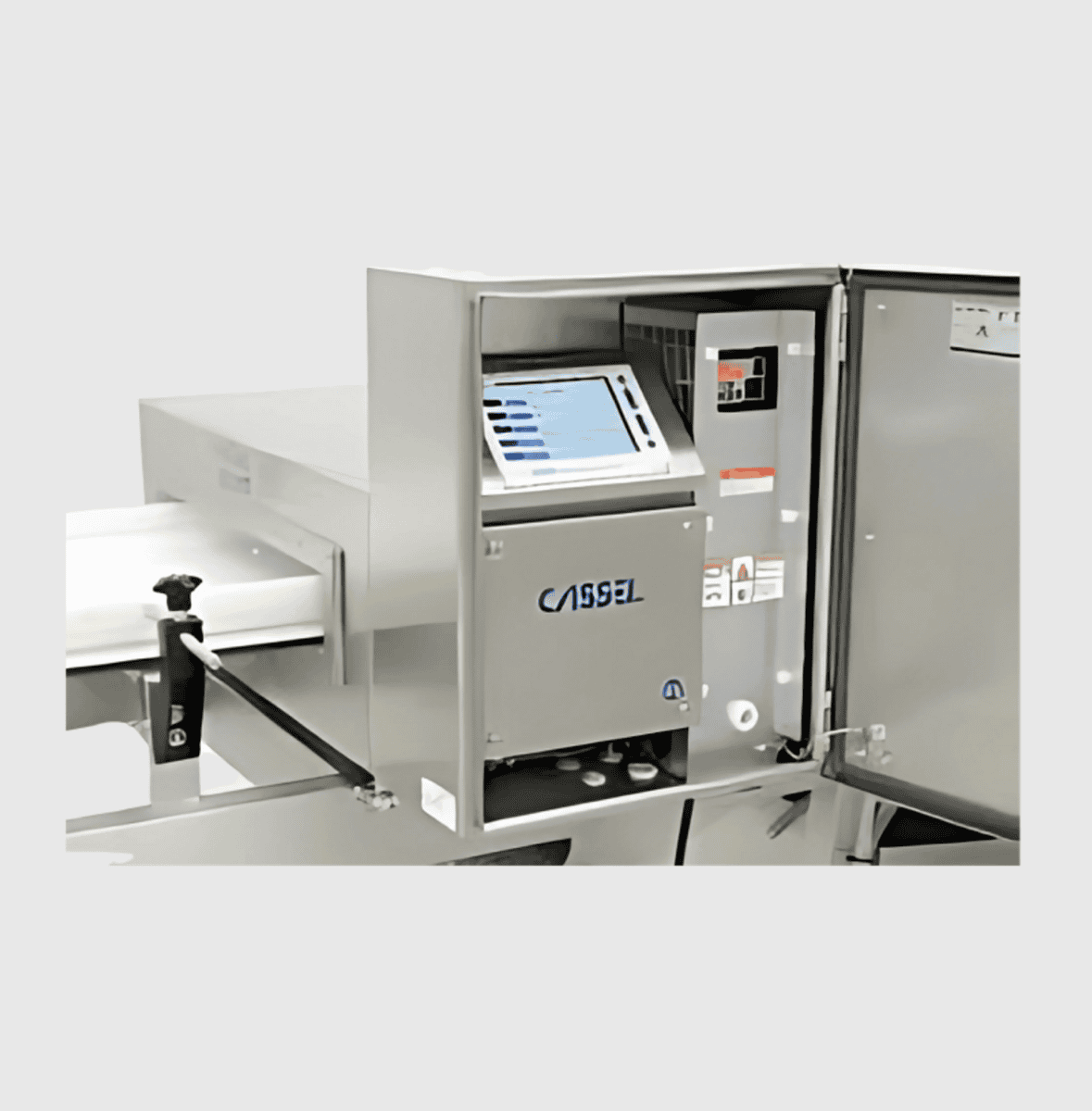

SHARKNET® 2 Software to Monitor Real-Time Inspection Results and Activity from a Central Computer
SHARKNET® 2 Software Monitoring Traceability of All Operational Data
SHARKNET® 2 Software for Quick, Easy Viewing and Printing of HACCP Reports
