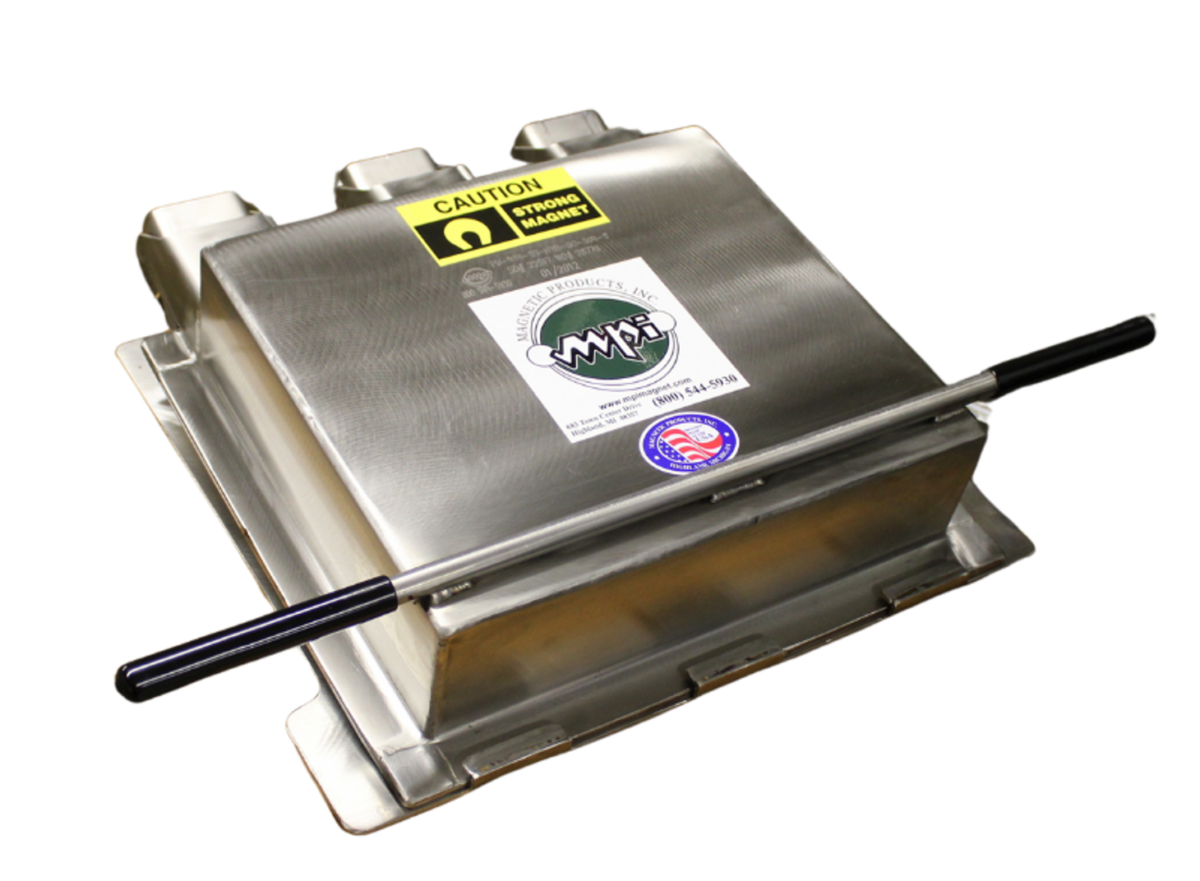

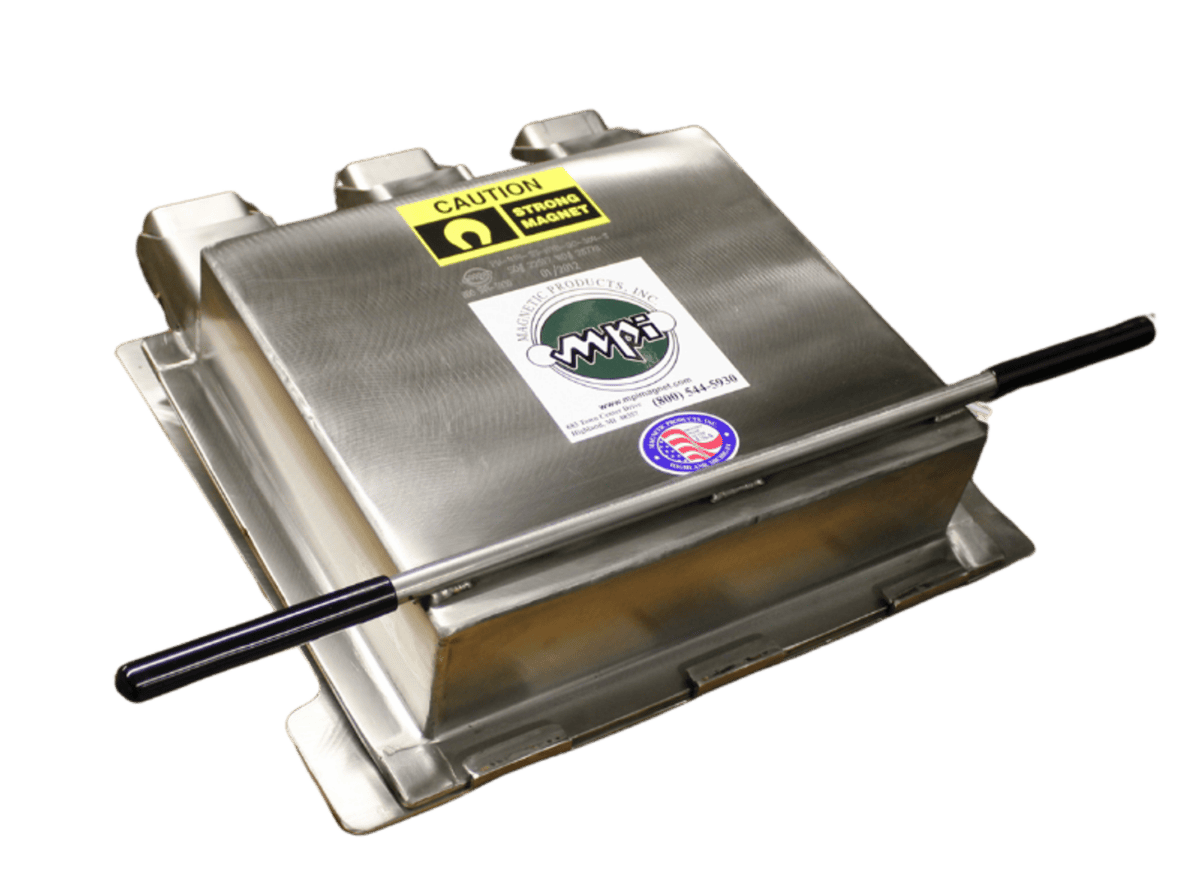

Quick-Clean Plate Magnet
Ideal for Below-The-Flow in Angled Chutes
Designed for applications requiring frequent cleaning with minimal downtime, the MPI Quick-Clean Plate Magnet features an efficient and user-friendly cleaning mechanism that streamlines contamination removal. The hinged or sliding assembly allows operators to quickly access the magnet surface, enabling fast and efficient debris removal without requiring extensive system shutdowns or disassembly. The cleaning mechanism design significantly reduces maintenance time and enhances overall process efficiency.
The Quick-Clean Plate Magnet simplifies routine cleaning by incorporating a smooth-release mechanism that lets operators wipe away or remove collected ferrous debris with minimal effort. By eliminating the need for manual scraping or prolonged handling, this system ensures that separation efficiency remains high while reducing labor demands. The Quick-Clean feature minimizes production interruptions, which is ideal for high-volume processing environments where contamination control is critical, helping facilities maintain consistent product quality and equipment protection. MPI's Quick-Clean Plate Magnet is Intell-I-Mag® Compatible.
Benefits of the Quick-Clean Plate Magnet From Magnetic Products, Inc
-
High-Intensity Magnetic Field
Efficient metal capture utilizes a strong magnetic field to effectively trap both fine and large ferrous contaminants, such as iron filings, rust, nails, and metal fragments. This technology is advantageous for industries like food processing, pharmaceuticals, and plastics, where material purity is crucial. It ensures consistent performance, providing long-term efficacy in removing metal contaminants from free-flowing materials in chutes, conveyors, and ducts.
-
Durable Stainless-Steel Construction
The product is made from high-grade stainless steel, ensuring exceptional durability against corrosion, rust, and wear, even in harsh environments. It meets industry hygiene and safety standards, making it suitable for food, pharmaceutical, and chemical processing while complying with FDA, USDA, and GMP regulations. Additionally, it is designed for high-impact applications, making it ideal for industries that handle abrasive materials like mining, cement, and bulk material processing.
-
Quick and Easy Cleaning Mechanism
These models are engineered for rapid and effortless debris removal. They feature a quick-release mechanism that enables contaminants to be cleared in one smooth motion. This innovation decreases operators' time handling materials, enhancing workflow efficiency in high-volume applications.
-
Versatile Installation
The product features flexible integration, allowing it to be mounted in various systems like chutes, ducts, and conveyors without significant modifications. It comes in customizable configurations with different sizes and strengths to meet diverse processing line needs. This versatility makes it suitable for multiple industries, including food processing, plastics, recycling, agriculture, and bulk material handling.
-
Cost-Effective Solution
This solution operates without electricity, making it energy-efficient and cost-effective. It incurs minimal maintenance costs, needing only routine cleaning due to the absence of moving parts or complex components. With a durable design, it offers a long service life and ensures a high return on investment.
-
Prevents Equipment Damage
The system safeguards essential machinery by preventing metal contaminants from harming equipment such as grinders, crushers, mills, extruders, and packaging machines. This leads to reduced downtime and repairs, minimizing unexpected breakdowns and enhancing overall equipment efficiency. Additionally, it improves workplace safety by stopping hazardous metal fragments from entering processing lines, which lowers the risks of sparks, fires, and product recalls.
Quick-Clean Plate Magnet Product Details
Magnetic Separation Process
MPI’s Manual Clean Plate Magnets utilize high-intensity magnetic fields to capture and retain ferrous contaminants as materials pass over their surface. These magnets are engineered to protect downstream equipment and preserve product integrity in various bulk material handling scenarios.
- Material Flow & Magnetic Attraction: As the product moves across the plate magnet, ferrous contaminants (including iron filings, metal shavings, and tramp metal) are attracted and securely retained on the magnet’s surface.
- Single Step & Double Step Design:
- Single Step Plate Magnets slightly divert the product stream, ensuring contaminants are drawn away from the primary material flow.
- Double-step plate Magnets provide an enhanced separation mechanism, creating additional trapping points for contaminants and facilitating the removal of finer metal debris.
- Optimized Magnetic Holding Power: Utilizing Magnetic 400 series stainless steel pole areas enhances magnetic efficiency, ensuring that even the smallest ferrous particles adhere firmly to the magnet's surface.
- Sanitary & Easy Installation: MPI Plate Magnets come equipped with hinges, latches, and mounting hardware, making for quick and secure installation in existing processing lines. The hinged mounting system allows for easy access during maintenance and cleaning.
- Effective in Deep Product Streams: The strong magnetic field penetrates product flows up to 8 inches deep, making it suitable for bulk material processing applications where contamination control is essential.
Versatile Mounting & Placement
MPI Manual Clean Plate Magnets are designed for flexible installation, ensuring optimal separation efficiency across multiple processing environments:
- Above Conveyor Belts: Mounted over material flow to capture ferrous contaminants before they reach grinders, crushers, or downstream equipment.
- Inside Chutes or Hoppers: Installed within gravity-fed or pneumatic transfer systems to eliminate tramp metal from bulk materials.
- Inline Processing Applications: Positioned within product flow paths to avert metal contamination in food processing, recycling, plastics, and pharmaceutical industries.
Cleaning Process
To maintain magnetic efficiency and prevent buildup, operators should regularly remove accumulated contaminants from the magnet surface.
Quick-Clean Mechanism (For Quick-Clean Models)
- Designed for faster and easier debris removal, these models feature a quick-release mechanism that removes contaminants in a single motion.
- Reduces operator handling time, improving workflow efficiency in high-volume applications.
Quick-Clean Plate Magnet Specification Table
US Customary Units
| PLATE MAGNET MODEL # | (A) OVERALL LENGTH (IN) | (B) MAGNET LENGTH (IN.) | (C) THICKNESS (IN.) | STEP HEIGHT (IN.) | FIELD DEPTH (IN.) | APPROX. WEIGHT PER FT. OF CHUTE WIDTH (LBS.) |
|---|---|---|---|---|---|---|
| MP-100 | 7.5 | 5.5 | 1 | 0.50 | 1 | 14 |
| MP-200 | 8.5 | 6.5 | 1.5 | 0.63 | 2 | 20 |
| MP-300 | 10.5 | 8.5 | 2.12 | 0.81 | 3 | 40 |
| MP-400 | 12.5 | 10.5 | 2.75 | 1.00 | 5 | 60 |
| MP-500 | 15.5 | 13.5 | 4.25 | 1.50 | 8 | 96 |
| MP-600 | 18.5 | 16.5 | 6.5 | 1.68 | 10 | 165 |
Quick-Clean Plate Magnet Installations & Variations

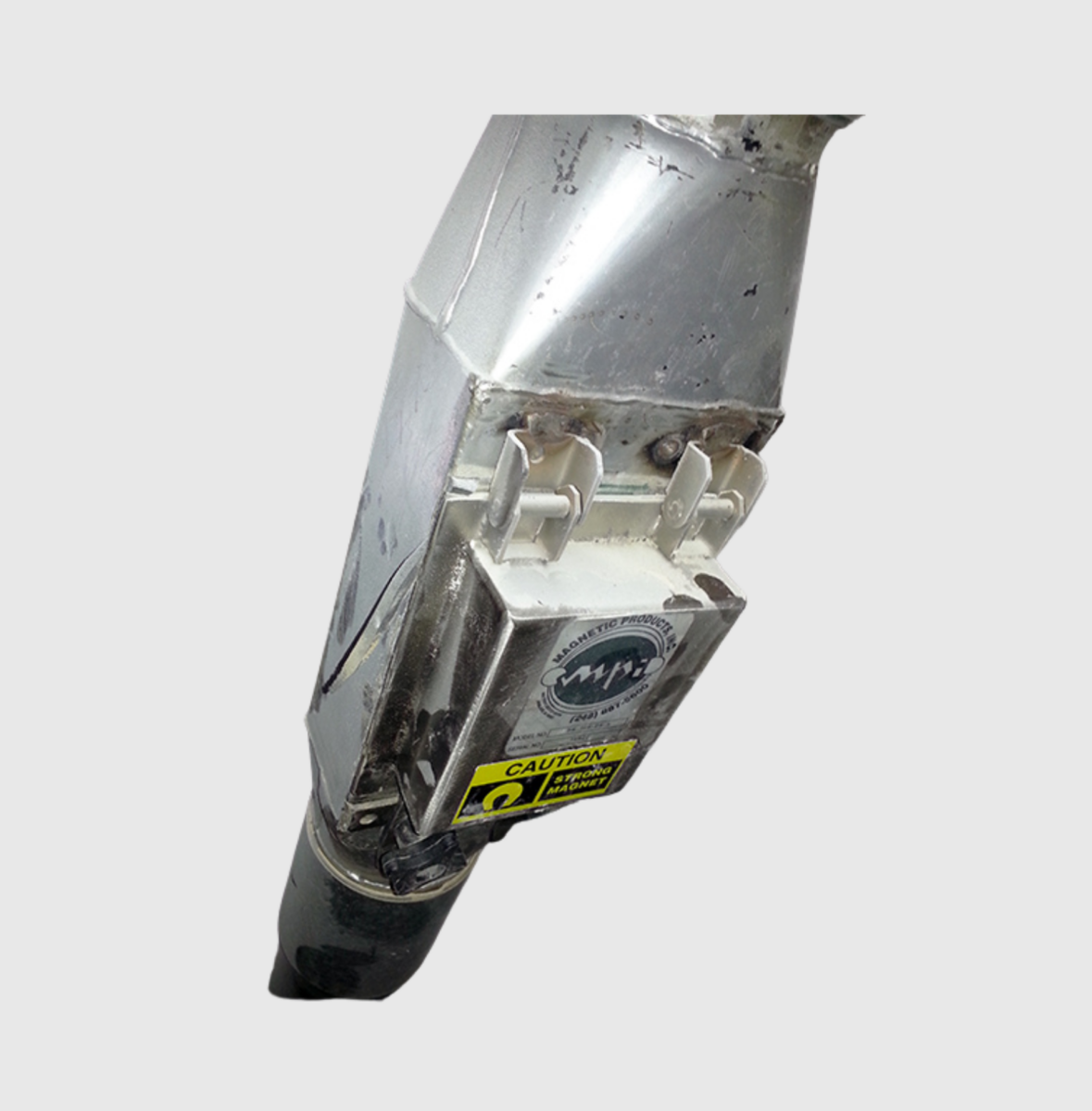

Quick-Clean Plate Magnet Installed in Bulk Powder Processing Line

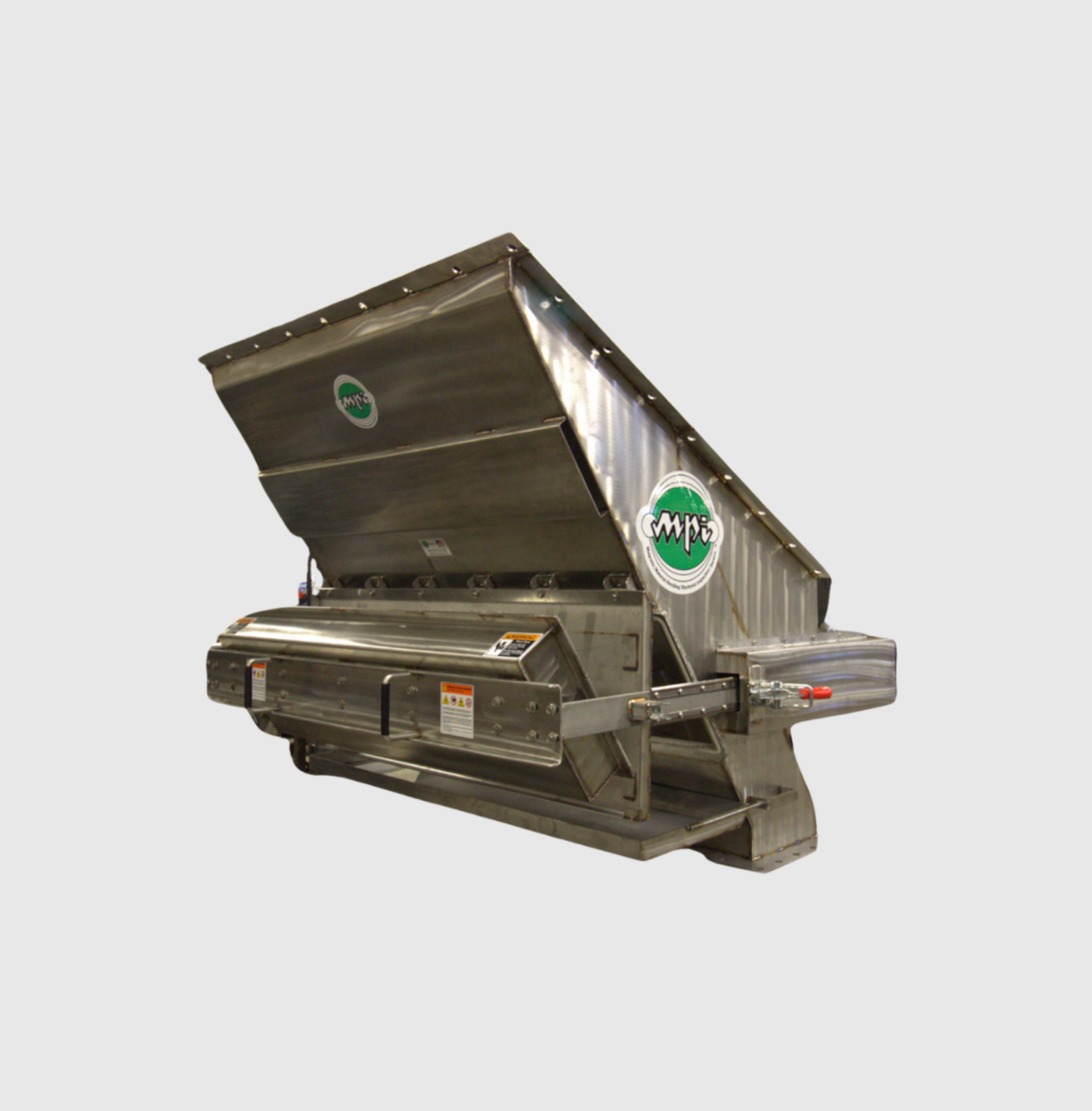

Quick-Clean Plate Magnet Specified with Counterbalance for Even Easier Maintenace
Quick-Clean Plate Magnet Designed for Gravity-Fed Transfer Inside Hopper
