Pan Mount Bracket

Easy Shaker Pan Removal

The MPI Quick Release Pan Mount Bracket is designed to securely attach shaker pans to the crossbar of an MPI Electric Shaker Conveyor, ensuring safe and efficient scrap transfer. This all-metal, lightweight bracket system allows operators to quickly add, remove, or reposition pans during die changes without tools. It eliminates the use of wear-prone plastic components and maintains long-term shaker performance. Each set includes both left and right-hand attachments, with one set required per pan.

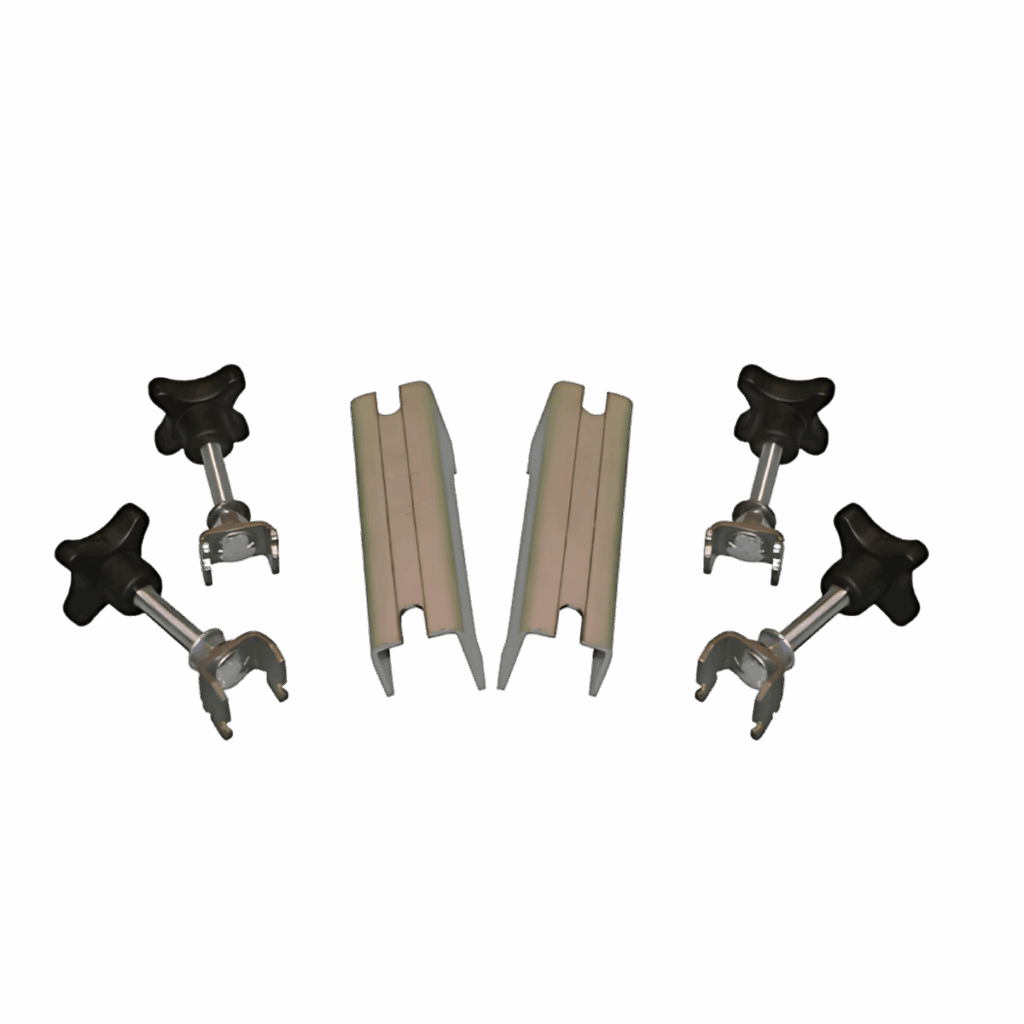

MPI Pan Mount Brackets

Benefits of the Pan Mount Bracket From Magnetic Products, Inc

  • Fast Changeovers

    Allows quick and easy pan installation or removal during die changes, reducing downtime.

  • Secure Attachment

    Hand-tightened metal brackets provide a strong, reliable connection to the shaker crossbar.

  • Durable Construction

All-metal design eliminates plastic parts that can wear out, ensuring long-lasting performance.

  • Lightweight Design

Adds minimal weight to the shaker system, preserving efficiency and vibration performance.

Pan Mount Bracket Product Details

How It Works
How It Works
Shaker pan should always be securely mounted to the crossbar to ensure proper scrap transfer and protect the pans and motor from damage. MPI Quick Release Pan Mount Bracket Accessory are designed to make adding, removing or moving shaker pan quick and easy for operators in between die changes. Once tightened by hand, the mounting system securely attaches the pan to the crossbar. This metal mounting system does not use any plastic that wears out over time and is lightweight so it does not impact the long term performance of the shaker system. One set is required for each pan. A set includes a left and right hand pan attachment.
Related Resources and Technical Information

Pan Mount Bracket Specification Table

US Customary Units
Model Number Extrusion Size (IN.) Electric Scrap Shaker Model
QRPMB-1.5X1.51.5M-10 & M-50
QRPMB-1.5X3.03.0M-200
QRPMB-1.5X4.54.5M-200 Rack & Pinion
