Permanent Crane Magnet

The MPI Permanent Crane Magnet allows easy lifting and handling of sheets and steel pla

...read more

Download Datasheet
Download Workholding and Automation Catalog

MPI PROMISE

123permanent-crane-magnet123permanent-crane-magnet

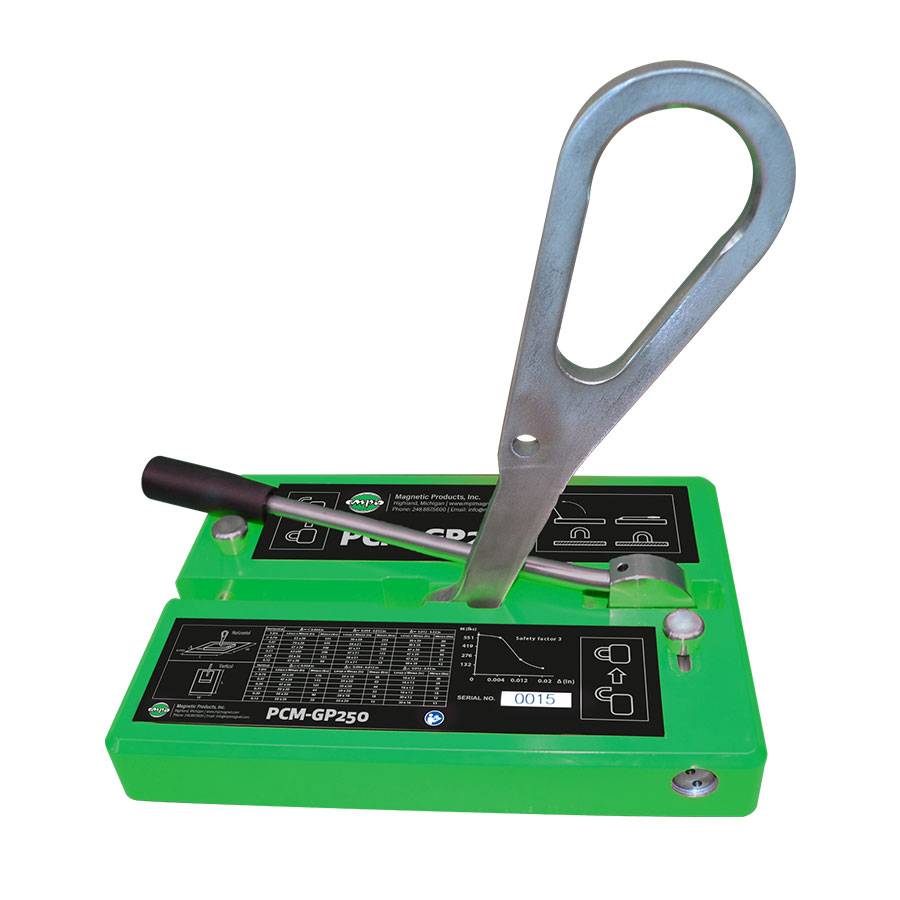

Permanent Crane Magnet

  • Easy handling and tilting of loads from horizontal to vertical positions and vice versa
  • Large lockable lifting eye prevents undesirable tilting from horizontal to vertical positions
  • Lockable release lever for comfortable and safe operation
  • Light, compact design
  • First magnetic “claw” of its kind which is in compliance with UNI EN 13155 standard for handling with a crane
  • Unique pole configuration reduces peel-off effect for thin sheets during handling
  • Low magnetic field handles individual sheets from 0.12 in thickness
  • One (1) year warranty for the magnetic system
  • Manufactured in Europe to the highest quality standards

The MPI Permanent Crane Magnet allows easy lifting and handling of sheets and steel plates from horizontal to vertical positions and vice versa. The large lifting eye is lockable and prevents undesirable tilting from horizontal to vertical positions. The lockable release lever is comfortable and safe for the operator.

When to choose MPI Permanent Crane Magnet:

The MPI Permanent Crane Magnet handles and lifts metal sheets and steel plates from 0.12 in thickness. Loads of up to 551 lbs can be handled horizontally and 176 lbs vertically. The unique configuration of poles makes it possible to use this magnet and take individual metal plates from a stack starting with 0.16 in thickness. At the same time, this configuration reduces peel-off effect by thin metal sheets significantly. It is in compliance with a lifting capacity safety factor rating of 4:1.
Download the Lifting Magnet Workload Limit Instructions.

  • Important parameters:
    • Application: Lifting
    • Technology: Permanent
    • Horizontal working limit: 551 lbs
    • Vertical working limit: 176 lbs
    • Size: 7.8 x 11.3 x 1.6in
    • Temperature: maximum 176°F/80°C
    • Safety factor: 4:1
  • Use:
    • Strong magnet designed for suspension from a crane hook
    • Handling loads from horizontal to vertical positions and vice versa
    • Handling sheet metals from a stack, from 0.16 in material thickness
 Permanent Crane Magnet Illustration
  • US Customary Units
  • Metric Units

US Customary Units

  Part Number Width (IN) Length (IN) Height (IN) Horizontal Limit (LBS) Vertical Limit (LBS) Weight (LBS) Tested Breakaway Force (LBS)
PCM-GP250 7.8 11.3 1.6 551 176 21.5 2,425

Metric Units

  Part Number Width (mm) Length (mm) Height mm) Horizontal Limit (kgs) Vertical Limit (kgs) Weight (kgs) Tested Breakaway Force (kgs)
PCM-GP250 198 287 41 250 80 10 1.1

Currently no options available for this product.
