- Unique magnetic drum that is fully energized along its width and diameter
- Automatic and continuously self-cleaning
- 120 VAC standard
- Optional Rare Earth Magnetic Roll
- CC-series separator can be integrated with other purifiers to provide a very efficient filtering system

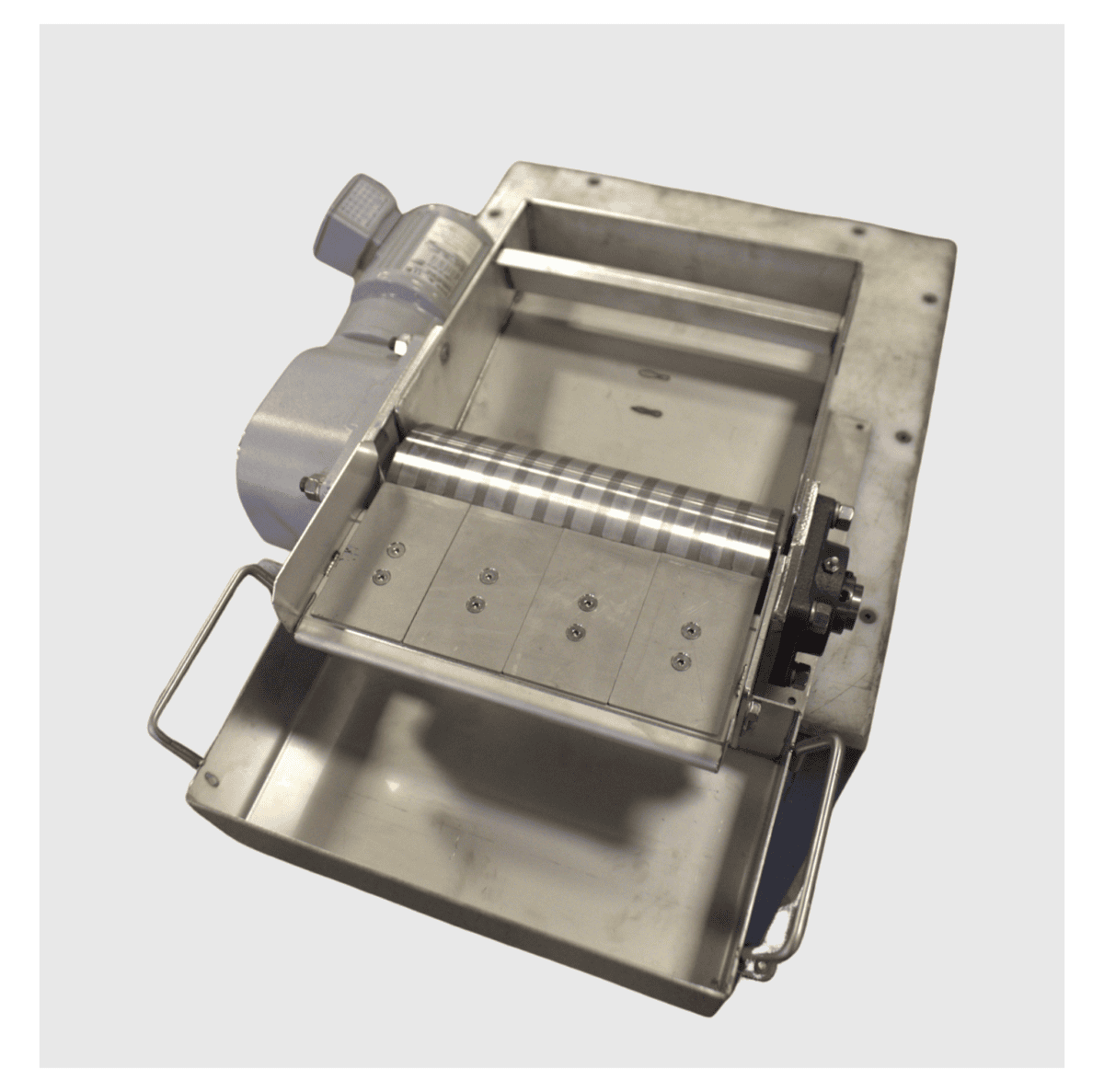

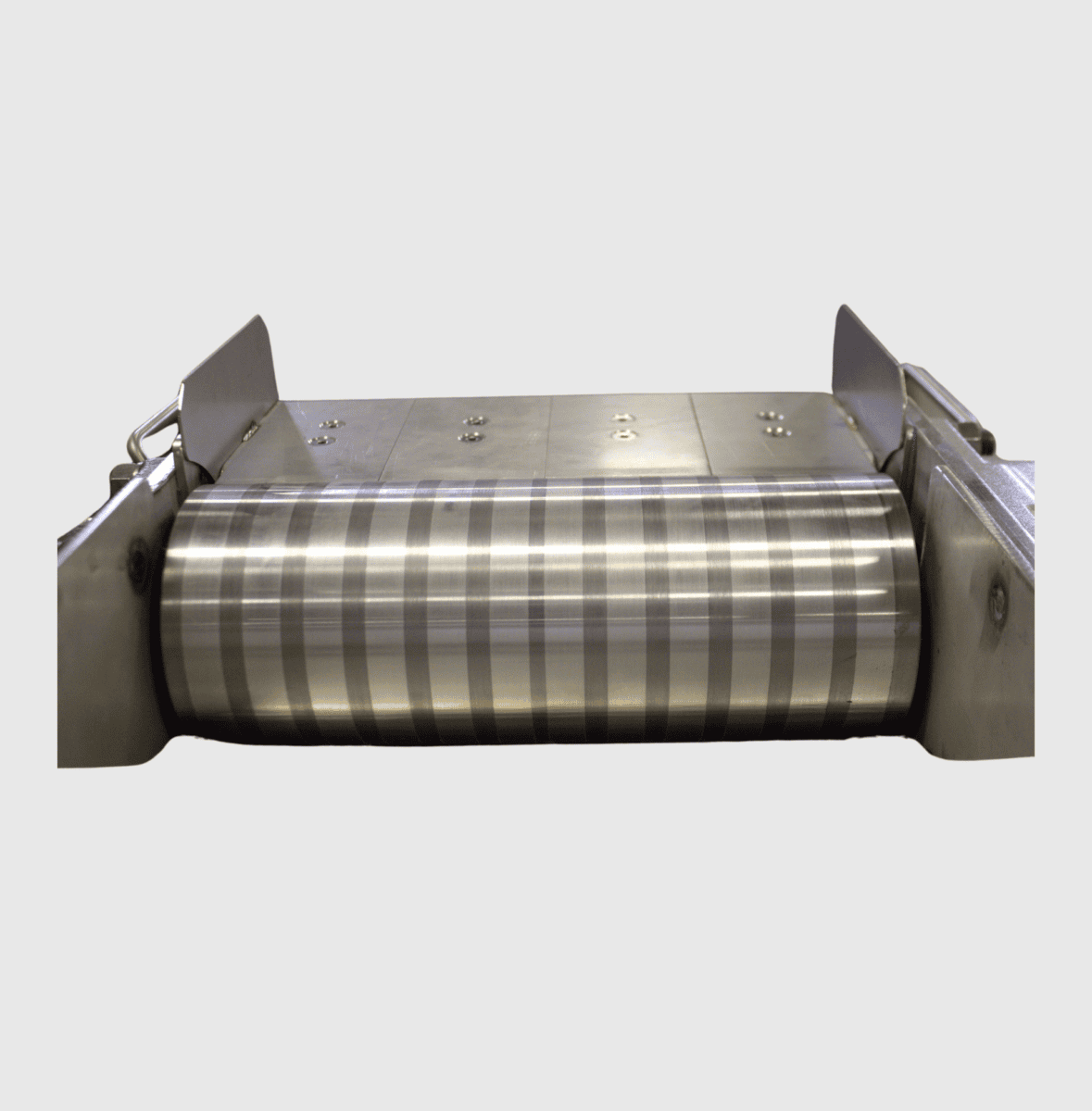

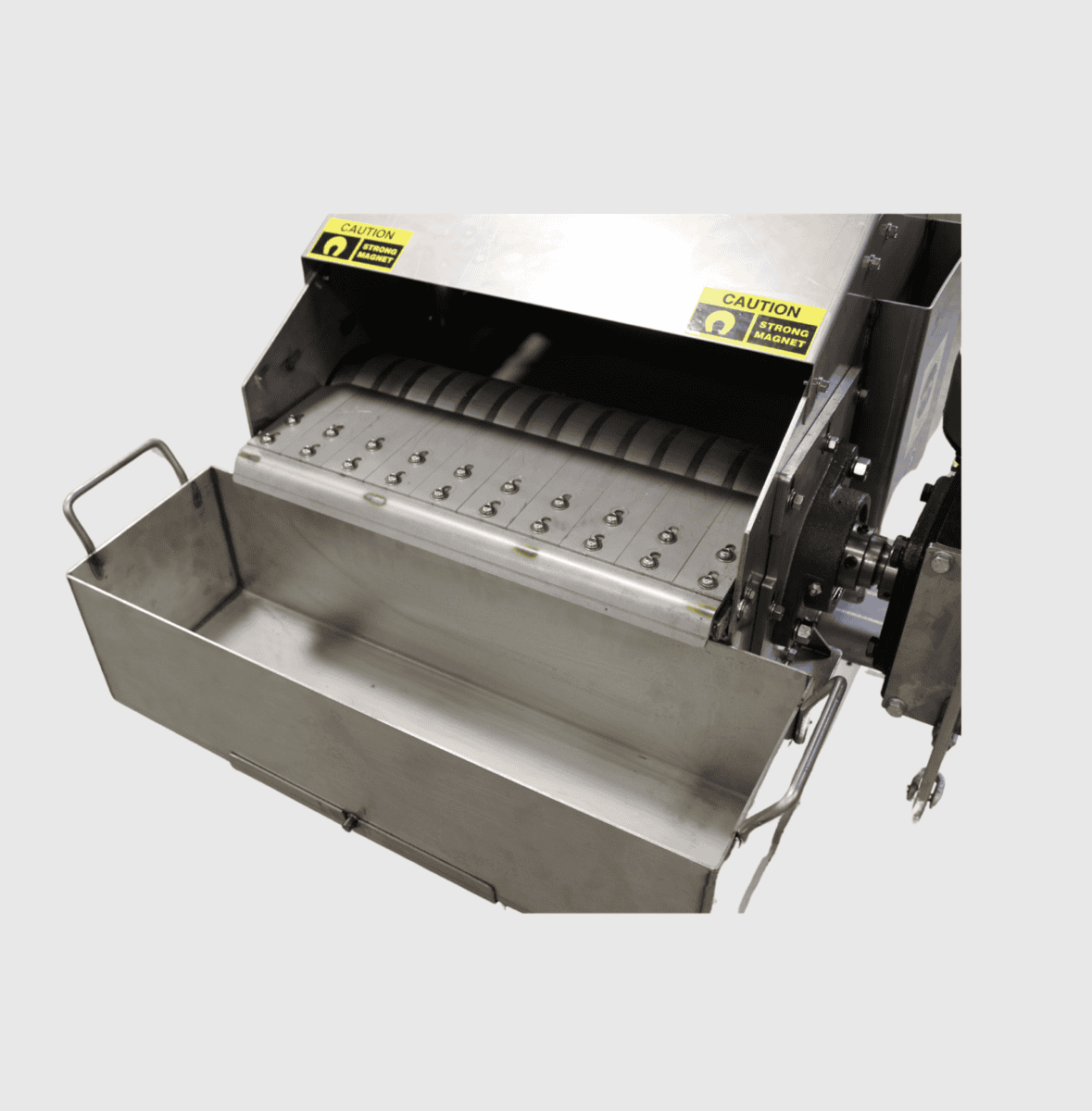

MPI’s Coolant Cleaner provides a simple and automatic cleaning design using powerful Ceramic 8 magnet material in the core of its drum, which is partially submerged in the liquid. The magnetic field passes through the coolant flow, so all the liquid comes into contact with the high intensity magnetic field. Ferrous contaminant attaches itself to the rotating drum where it is being cleaned continuously by a profiled scraper. The contaminant is pushed along the scraper until it falls into a bin. As the contaminant is pushed along the scraper, it compresses and any excess liquid drains back into the tank leaving the solids almost dry.The CC-series separator can be integrated with other purifiers to provide a very efficient filtering system.
US Customary Units
Model # | Approx. Capacities/GPM | Magnetic Drum Size | Approx. Weight | ||||
Water Soluble | Oil 100 SSU | Diameter | Width | ||||
Contamination* | |||||||
Light | Heavy | IN | IN | LBS | |||
CC-06 | 20 | 15 | 15 | 10 | 4.625 | 6 | 65 |
CC-12 | 40 | 35 | 25 | 20 | 4.625 | 12 | 135 |
CC-18 | 65 | 50 | 40 | 30 | 4.625 | 18 | 175 |
CC-24 | 85 | 70 | 50 | 40 | 4.625 | 24 | 225 |
*Contamination Scale: Light to Medium = up to approximately 1/8 lbs per gallon; Medium to Heavy = from approximately 1/8 lbs to just under 1/2 lbs per gallon
Metric Units
Model # | Approx. Capacities/LPM | Magnetic Drum Size | Approx. Weight | ||||
Water Soluble | Oil 100 SSU | Diameter | Width | ||||
Contamination* | |||||||
Light | Heavy | CM | CM | KG | |||
CC-06 | 75.7 | 56.8 | 56.8 | 37.8 | 11.75 | 15.25 | 29.5 |
CC-12 | 151.4 | 132.5 | 94.6 | 75.7 | 11.75 | 30.5 | 61.25 |
CC-18 | 246.1 | 189.3 | 151.4 | 113.6 | 11.75 | 40.75 | 79.25 |
CC-24 | 321.8 | 265.0 | 189.3 | 151.4 | 11.75 | 61 | 102 |
*Contamination Scale: Light to Medium = up to approximately 0.015 kgs per liter; Medium to Heavy = from approximately 0.015 kgs per liter to just under 0.06 kgs per liter
- Rare earth magnetic roll
