Plate Magnets
Plate magnetic separators are devices designed to remove ferrous contaminants from free-flowing materials, such as grains, powders, and recycled products, ensuring product purity and protecting equipment from damage. These separators utilize a strong permanent magnet to attract and retain iron-containing particles while allowing non-magnetic materials to pass through. They are crucial in various industries, including biomass, cement, pulp and paper, and food processing, where they safeguard processing machinery from tramp iron and enhance the safety and quality of the final products. Plate magnets can be easily installed in chutes, above conveyors, or other material handling systems to effectively extract ferrous debris and improve operational efficiency. By eliminating contaminants, they prevent potential equipment damage and play a vital role in maintaining the integrity of processed materials. All MPI Plate Magnets are Intell-I-Mag® Compatible.

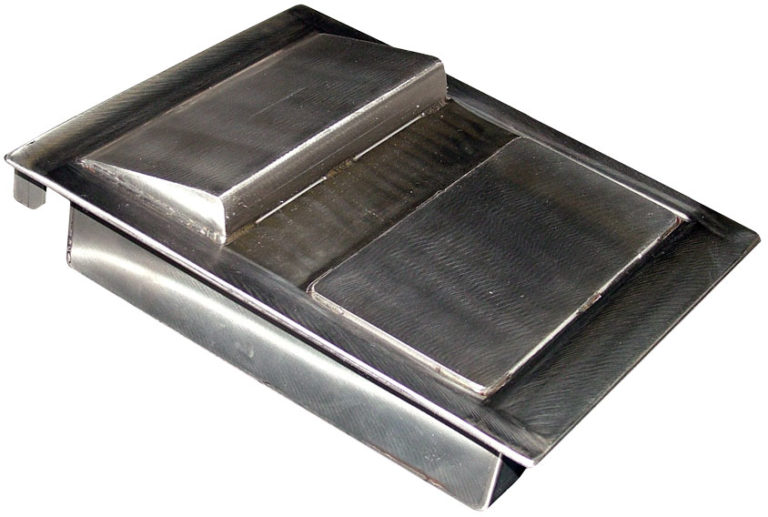

Manual-Clean Plate Magnet
The MPI Manual Clean Plate Magnet offers an economical solution for separating ferrous metals in gravity-fed or conveyor systems. Installed above material flow areas, it effectively captures tramp metal like nails, bolts, and shavings. Operators must manually remove the collected contaminants to ensure ongoing protection for processing equipment. Options include abrasion-resistant and rare earth, ceramic, or hybrid magnet types.

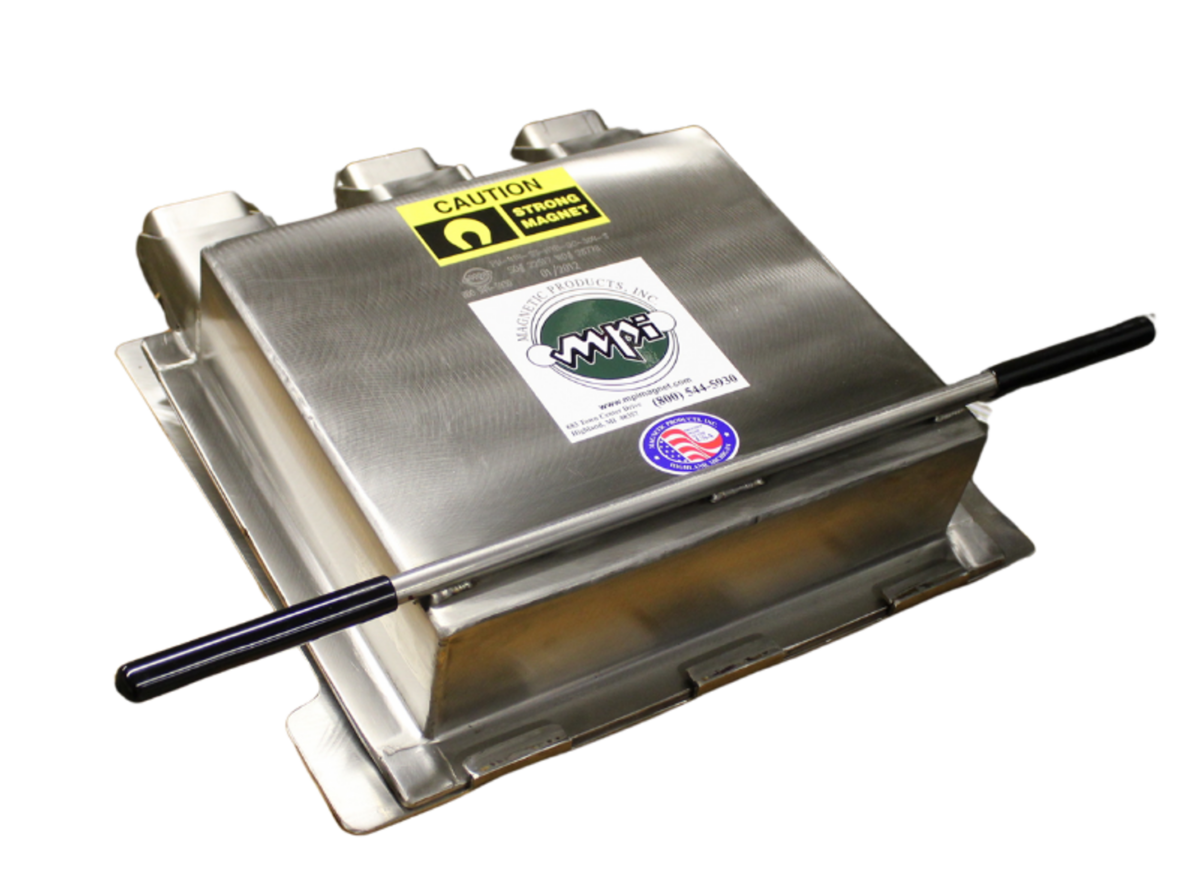

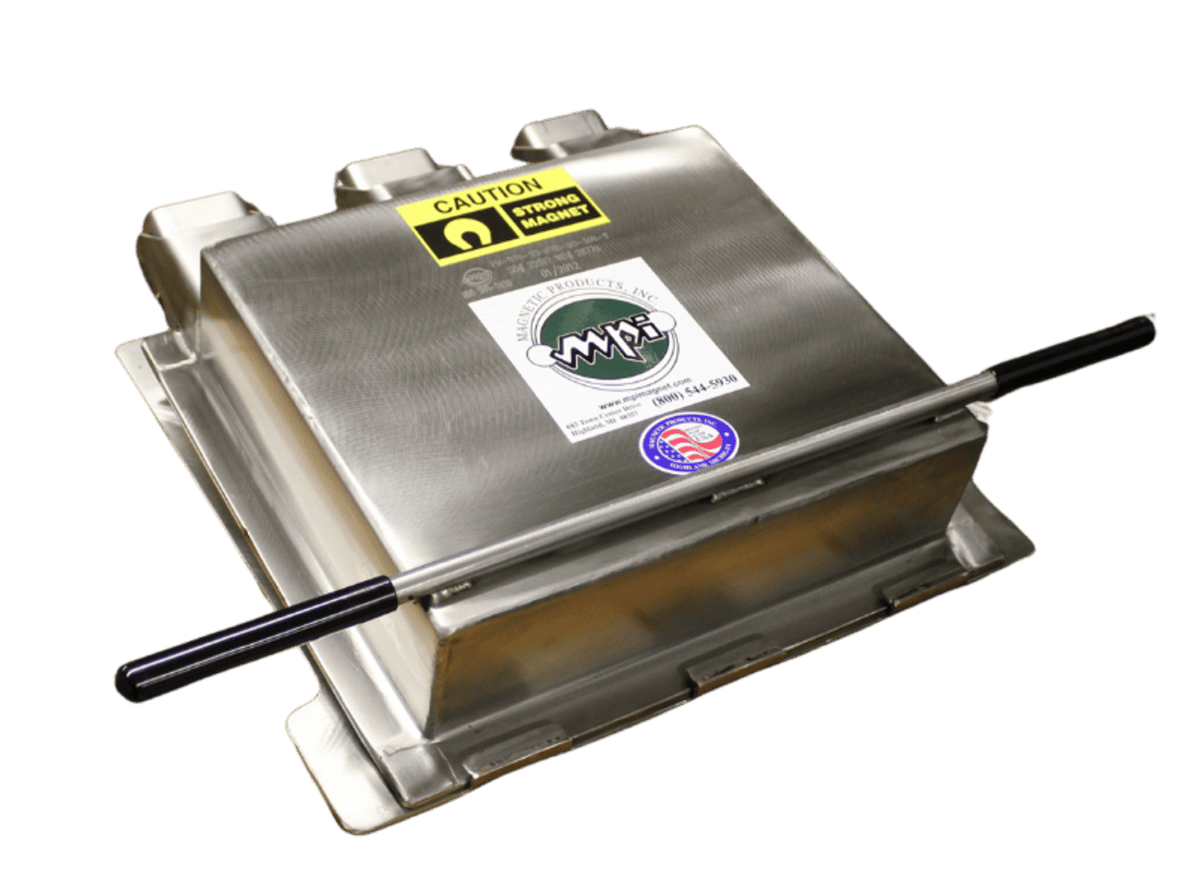

Quick-Clean Plate Magnet
Designed for applications requiring frequent cleaning with minimal downtime, the MPI Quick-Clean Plate Magnet features an easy-to-use cleaning mechanism. The hinged or sliding assembly allows operators to quickly wipe or remove captured ferrous debris without requiring extensive system shutdowns. MPI Quick-Clean Plate Magnets options include abrasion-resistant and rare earth, ceramic, or hybrid magnet types.

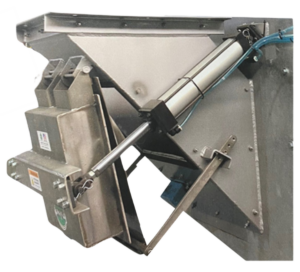

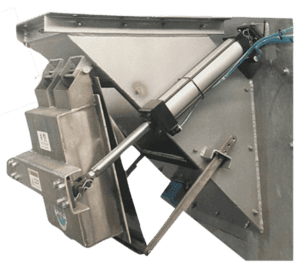

Self-Clean Plate Magnet
The MPI Self-Clean Plate Magnet provides fully automated metal separation for continuous operation in high-volume processing environments. Using a pneumatically controlled cleaning system, the self-cleaning plate magnet automatically removes collected contaminants at timed intervals, ensuring uninterrupted production and minimal maintenance. MPI Self-Clean Plate Magnet options include abrasion-resistant and rare earth, ceramic, or hybrid magnet types.

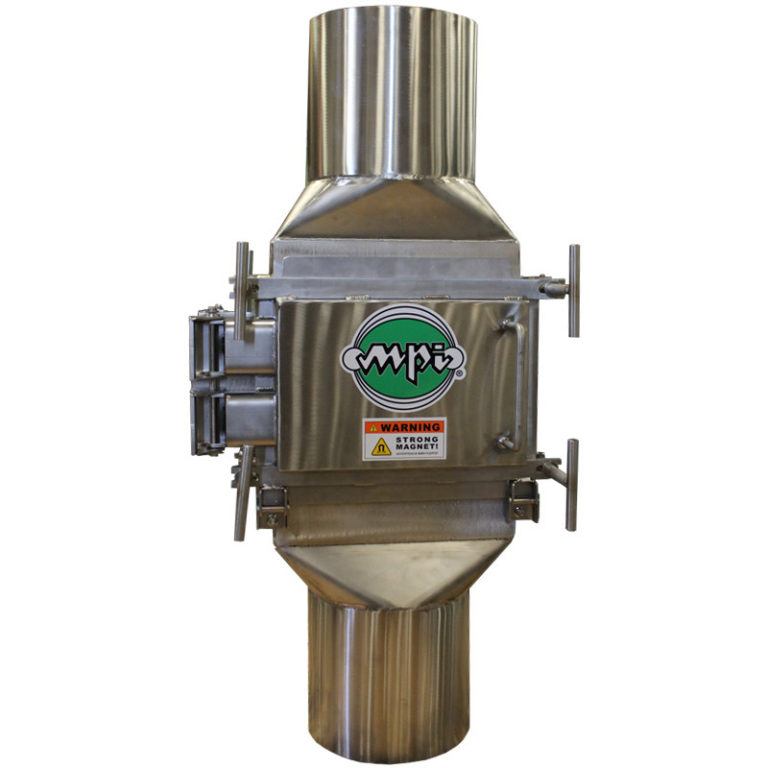

Manual-Clean Plate Magnet In Housing (Inline Plate)
The MPI Manual-Clean Inline Plate is designed for efficient magnetic separation in gravity-fed chutes and pneumatic conveying systems, suitable for low to medium volume product streams. Made from durable stainless-steel, it offers customizable connections and dual plate configurations for easy integration and optimal performance in existing processes. Operators manually access and remove ferrous contaminants via a hinged mount. The separator effectively captures unwanted metal particles in product streams <8 in. deep, ensuring product purity and equipment safety.

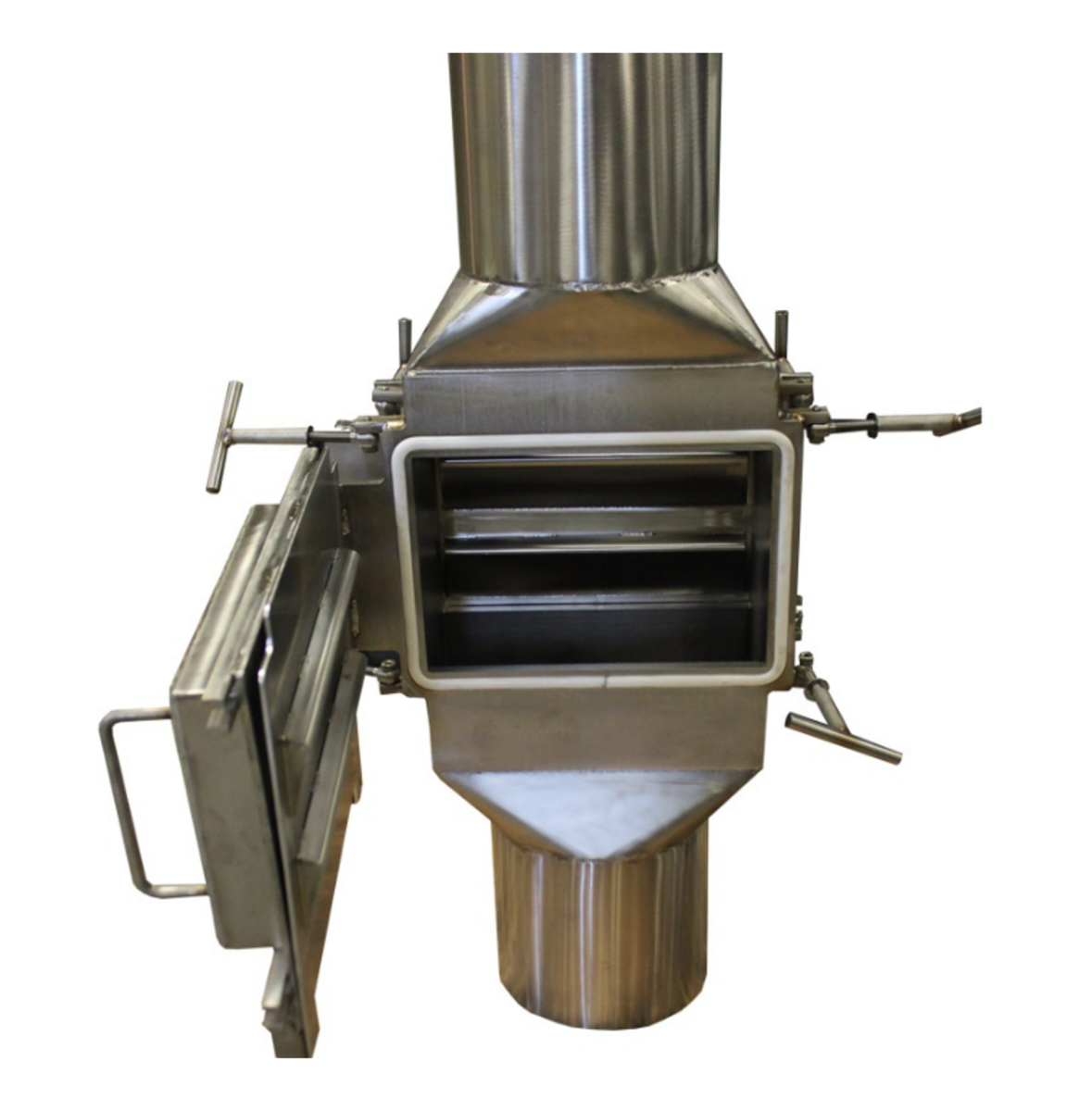

Quick-Clean Plate Magnet In Housing (Inline Plate
MPI’s Quick-Clean Inline Plate Magnetic Separator is designed for effective magnetic separation in gravity-fed chutes and pneumatic systems. It features a quick-clean mechanism for easy removal of ferrous contaminants via a hinged plate magnet. Made from stainless steel with customizable connections, it seamlessly integrates into production lines and effectively captures contaminants in product streams up to eight inches deep. An optional dual magnet configuration is available to improve performance in pneumatic applications.

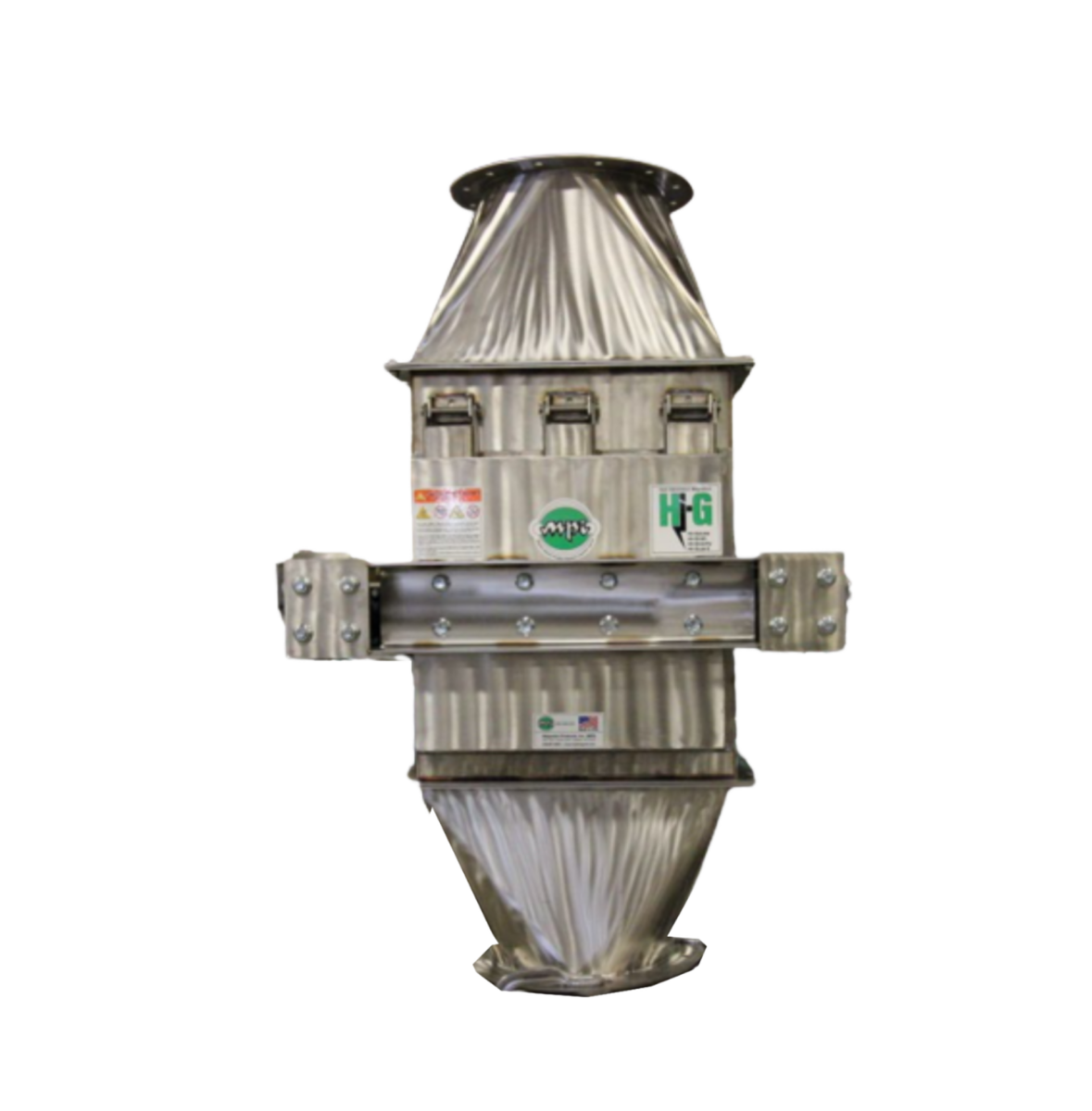

Self-Clean Plate Magnet In Housing (Inline Plate)
MPI’s Self-Clean Inline Plate Magnetic Separator automates metal separation, reducing manual cleaning and production downtime. Suitable for gravity-fed chutes and pneumatic systems, it features an automatic cleaning cycle that efficiently removes ferrous contaminants with minimal operator involvement. Its robust stainless-steel housing and customizable connections facilitate easy installation, while dual magnetic poles ensure strong holding capacity for product streams up to 8 in. deep.

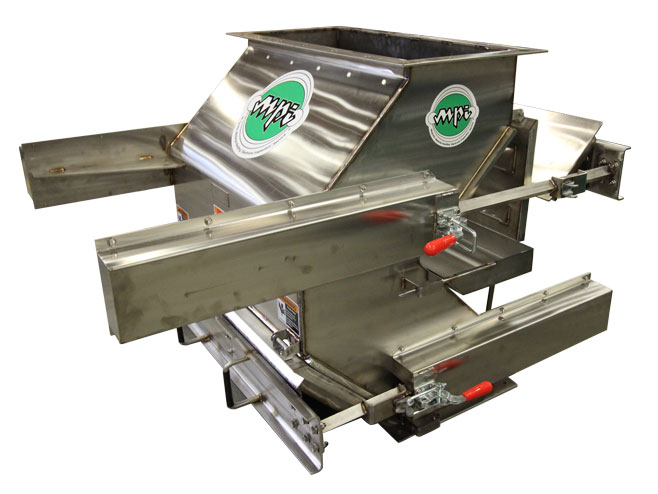

Hump Plate Magnet (Manual-Clean, Quick-Clean, and Self-Clean)
The MPI Hump Plate Magnet is designed for use in vertical or sloped gravity-flow chutes to effectively remove tramp metal through two opposing angled plate magnets. This setup slows down material flow, improving metal capture efficiency while reducing wash-off, making it suitable for food, plastics, and chemical processing. Operators must manually remove the collected contaminants to ensure ongoing protection for processing equipment. The magnets come in various options, including Manual, Quick-Clean, Self-Clean, abrasion-resistant, and In-housing models.

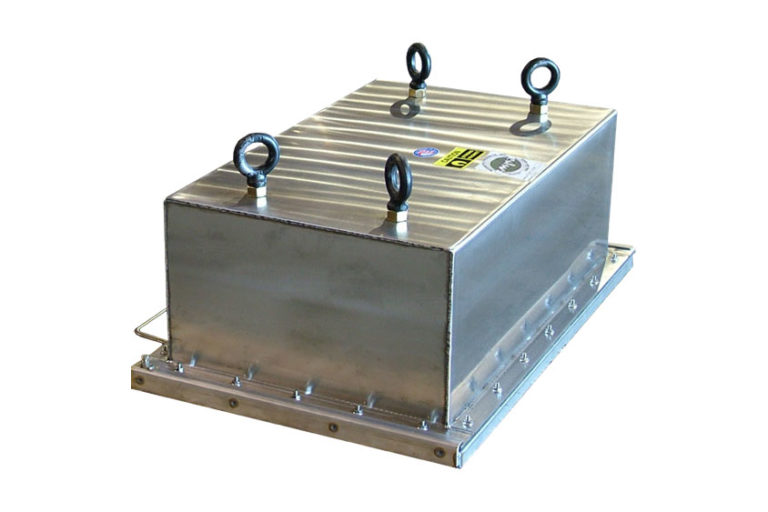

Suspended Plate Magnet (Manual and Quick-Clean)
MPI’s Suspended Plate Magnets provide efficient metal separation for recycling, mining, and bulk material handling applications. Designed for durability in demanding environments. The quick-clean feature provides hinged access, simplifying maintenance and minimizing downtime. Installed over conveyors, vibratory feeders, or gravity chutes, they provide a reliable, energy-free solution for removing tramp metal. Their focused magnetic circuit enhances separation efficiency, especially at discharge points, making them a cost-effective, high-performance choice for facilities requiring consistent, low-maintenance metal control.
Compatibility Check - Plate Magnet Comparison
Unique Benefits and Considerations
Industries, Applications and Regulations
For assistance in selecting the most suitable Electro & ElectroPermanent Magnetic Chucks and Controller for your application or for additional customization options, contact Magnetic Products Inc. today to speak with our team of experts!
Industry Type
Magnetic Products Inc. (MPI) offers a versatile range of plate magnets designed to meet the needs of different industries:
Food & Beverage Processing
Processed Materials: Flour, grains, sugar, spices, dairy powders, coffee, chocolate, and other bulk food ingredients.
Purpose: Prevents metal contamination in final food products, ensuring food safety standards (e.g., HACCP compliance).
Plastics & Recycling
Processed Materials: Plastic pellets, regrind material, shredded plastics, and recycled materials.
Purpose: Removes tramp metal before plastic extrusion, injection molding, or reprocessing.
Pharmaceutical & Chemical Processing
Processed Materials: Powdered drugs, chemical powders, dyes, and fine granules.
Purpose: Ensures product purity and prevents damage to sensitive processing equipment.
Mining & Aggregate
Processed Materials: Limestone, cement, sand, gravel, coal, and crushed stone.
Purpose: Extracts iron contaminants from bulk materials before they enter crushers, screens, or mills.
Agriculture & Animal Feed
Processed Materials: Grains, corn, soybean meal, animal feed pellets, and seeds.
Purpose: Protects milling and mixing equipment while ensuring clean feedstock for livestock.
Wood & Pulp Industries
Processed Materials: Wood chips, sawdust, and paper pulp.
Purpose: Prevents metal contamination in paper production and reduces wear on cutting and grinding machinery.
Ceramics & Glass
Processed Materials: Clay, feldspar, silica sand, and other raw minerals.
Purpose: Ensures high-quality ceramics and glass by removing metallic impurities.
Textiles & Fiber Processing
Processed Materials: Synthetic fibers, wool, cotton, and fabric scraps.
Purpose: Prevents metal fragments from damaging weaving, spinning, and processing equipment.
Processing Application
Plate magnets help improve flow efficiency, equipment protection, and product quality by capturing unwanted ferrous contaminants. They meet the following material handling requirements:
Gravity and Free-Flowing Systems
Installed in chutes, hoppers, ducts, and conveyor belts to remove metal contaminants from free-falling or conveyed materials.
Reduces blockages by preventing metal fragments from clogging or damaging downstream processing equipment.
Bulk and Powder Processing
Used in industries processing fine powders, granules, and bulk solids (e.g., food, pharmaceuticals, plastics).
Prevents ferrous particles from mixing with the product, ensuring high purity levels.
Protection of Equipment
Captures tramp metal, screws, nails, and worn machine parts before they reach grinders, crushers, mixers, or mills.
Reduces wear and tear on processing machinery, minimizing downtime and repair costs.
Automated and Continuous Operations
Plate magnets are low-maintenance, passive systems that continuously remove metal contaminants without disrupting workflow.
Self-cleaning options (such as hinged or drawer magnets) allow for easy removal of collected metal.
Regulations and Requirements
Plate magnets are critical for preventing contamination in sensitive production environments, ensuring compliance with industry standards.
Removal of Ferrous Contaminants
Efficiently captures iron particles, rust, wire, and other metallic impurities from raw materials.
Protects the final product from contamination that could affect quality, safety, and compliance.
Compliance with Industry Standards
Helps industries adhere to regulatory standards such as:HACCP, FDA, and USDA (Food & Beverage)
GMP (Good Manufacturing Practices) (Pharmaceuticals)
ISO Standards (General Manufacturing)
Reduces the risk of costly product recalls due to metal contamination.
Dust and Explosion Hazard Prevention
In industries dealing with fine powders (e.g., flour, sugar, chemicals), plate magnets help prevent sparking caused by metal contaminants, reducing fire and explosion risks.
Supports compliance with ATEX and NFPA regulations for dust control.
Product Purity & Consumer Safety
Essential in industries like food processing, pharmaceuticals, and chemicals, where even minor contamination can have severe consequences.
Ensures high-quality output and prevents brand reputation damage due to contaminated products.
